Products specifications Report Issue?

Reference Date Code 0639+

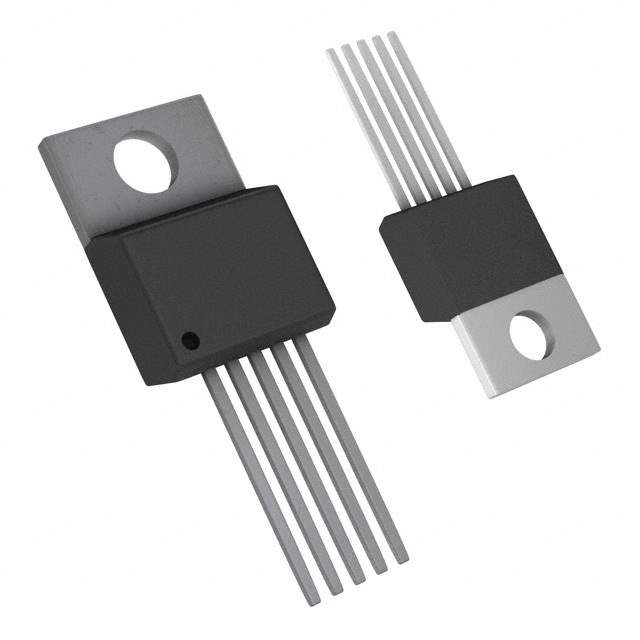

Reference case TO220
Manufacturer Linear Technology
Manufacturer Homepage www.linear.com
Win Source Part Number 739450-LT1185IT#06
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LT1185IT#06 CAD Model

Description

Product Overview: Linear Technology LT1185IT#06

The LT1185IT#06 is a high-performance low dropout (LDO) linear regulator from Linear Technology, designed to provide precision voltage regulation with a high degree of flexibility and efficiency. This robust component is well-suited for applications requiring a stable and reliable power supply, such as in telecommunications, industrial systems, and high-end consumer electronics.

Key Features

  • Adjustable Output: The LT1185IT#06 offers an adjustable output voltage ranging from 2.5V to 25V, allowing designers to tailor the power supply to their specific needs.
  • High Current Capability: This LDO is capable of delivering up to 3A of continuous output current, making it suitable for powering a wide array of devices and circuits.
  • Low Dropout Voltage: With a dropout voltage of typically 1.5V at full load, the LT1185IT#06 maintains efficiency and ensures a minimal voltage difference between the input and output.
  • Excellent Thermal Performance: The TO-220 package ensures effective thermal dissipation, contributing to the regulator's reliability and longevity even under heavy load conditions.
  • Stable with Low-ESR Capacitors: The LT1185IT#06 remains stable with low equivalent series resistance (ESR) capacitors, which can help reduce overall component count and system cost.

Applications

  • Power Supplies for DSPs and Microcontrollers
  • Battery-Powered Equipment
  • Post-Regulation for Switching Supplies
  • High-Current Power Supplies

Product Specifications

Parameter Value Output Voltage Range 2.5V to 25V Output Current 3A Dropout Voltage 1.5V (Typical at Full Load) Package Type TO-220

The LT1185IT#06 stands out as a reliable and versatile power solution, capable of meeting stringent requirements for a variety of applications. Its combination of high current capability, low dropout voltage, and thermal efficiency make it a top choice for engineers and designers seeking a high-quality voltage regulator.
