The LT1185IT#06PBF is a high-performance, low dropout (LDO) linear regulator from Linear Technology, designed to deliver continuous output current up to 3A with a dropout voltage of typically 340mV at full load. This regulator is an ideal choice for precision, high-power applications where a stable and reliable power supply is necessary.

Key Features:

• Adjustable Output: The LT1185IT#06PBF offers an adjustable output from 2.5V to 25V, which can be set by external resistors. This feature allows for a high degree of flexibility, making it suitable for a wide range of applications.
• Low Dropout Voltage: With a typical dropout voltage of just 340mV at full load, this regulator maintains efficiency and ensures minimal power loss in the system.
• High Output Current: Capable of delivering up to 3A of continuous output current, the LT1185IT#06PBF is perfect for powering demanding circuits.
• Excellent Regulation: It offers excellent line and load regulation, which ensures a stable output voltage even with variations in input voltage or output load.
• Overcurrent and Overtemperature Protection: Built-in protection features safeguard the regulator and the downstream circuitry from damage due to excessive current or overheating.

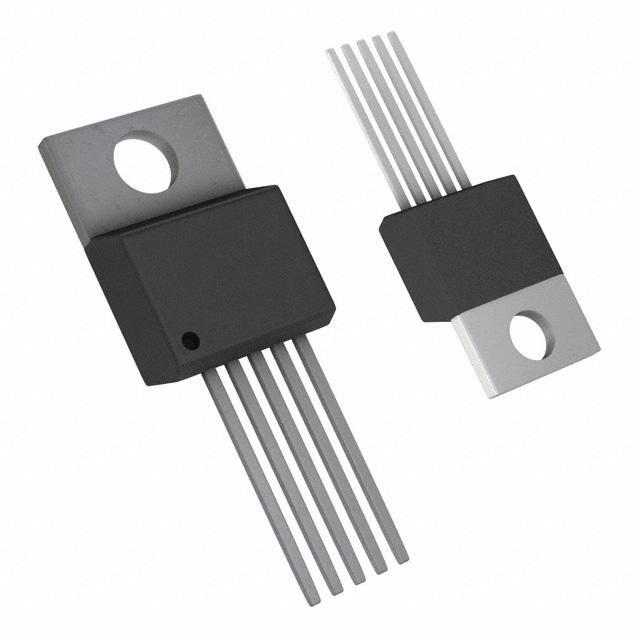

• Thermal Performance: The TO-220 package provides effective thermal performance, which is crucial for maintaining the integrity and longevity of the device under high-power operation.

Applications:

The LT1185IT#06PBF is versatile and can be used in a variety of applications, including but not limited to:

• High-efficiency linear power supplies
• Post-regulation for switching power supplies
• Battery chargers
• Computer systems
• Power management for consumer electronics

Conclusion:

The LT1185IT#06PBF from Linear Technology is a robust and reliable LDO regulator that offers high performance, adjustable output, and excellent protection features. Its ability to deliver a high output current with a low dropout voltage makes it an excellent choice for a wide range of power regulation applications where efficiency and thermal performance are critical.
