Linear Technology's LT1211CS8 Operational Amplifier

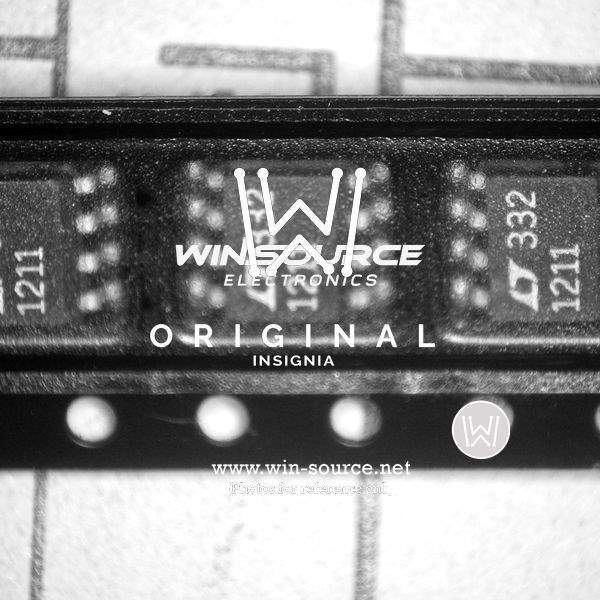

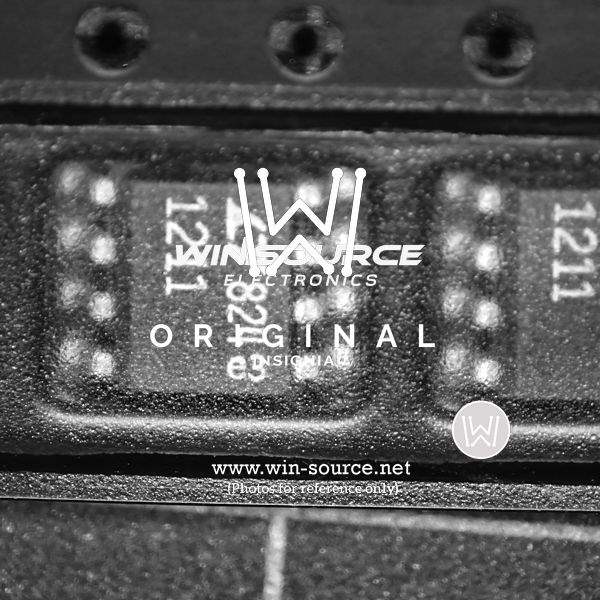

The LT1211CS8 is a robust operational amplifier (op-amp) designed by Linear Technology, a company renowned for its high-performance analog integrated circuits. This versatile component is encapsulated in an 8-lead SOIC package, making it a compact solution for a wide range of electronic applications. The LT1211CS8 is characterized by its high-speed performance and low distortion, making it an excellent choice for audio, video, and telecommunication systems, as well as for test equipment and sensor interfaces.

Key Features

• High Gain Bandwidth: The LT1211CS8 boasts a gain bandwidth product of 14MHz, which allows for fast signal processing in high-frequency applications.
• Fast Slew Rate: With a slew rate of 7V/µs, the LT1211CS8 can handle rapid changes in input signals, ensuring minimal signal distortion and preserving signal fidelity.
• Large Output Drive: Capable of delivering up to ±30mA of output current, this op-amp can drive heavier loads when necessary.
• Wide Supply Range: The operational amplifier operates with a supply voltage range from ±2.5V to ±15V, providing flexibility in various circuit designs.
• Low Input Offset Voltage: The LT1211CS8 features a low input offset voltage, which minimizes error and enhances overall accuracy in precision applications.

Applications

The versatility of the LT1211CS8 makes it suitable for a variety of applications, including:

• Active filters
• Fast amplifiers
• Video and audio processing circuits
• Data acquisition systems
• Telecommunication devices
• Photodiode amplifiers

Linear Technology's LT1211CS8 is engineered to meet the demands of sophisticated electronic systems, offering a blend of speed, precision, and reliability. Its robust design ensures stability and performance across a broad range of operating conditions. Whether you're designing a professional audio system or a sensitive instrumentation circuit, the LT1211CS8 is a choice that promises to deliver exceptional results.
