Products specifications

Categories Integrated Circuits
Manufacturer Linear Technology/Analog Devices
Packaging Tube
Output Type Adjustable
Voltage - Input (Maximum) 45V
Min/Fixed Output Voltage 0.6V
Maximum Output Voltage 40V
Maximum Dropout Voltage 0.59V at 500mA
Output Current 500mA
Current - Quiescent (Iq) 130μA
Maximum Supply Current 25mA
PSRR 85dB (120Hz)
Control Features Current Limit, Enable, Power Good, Soft Start
Protection Features Over Current, Over Temperature, Reverse Polarity
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD

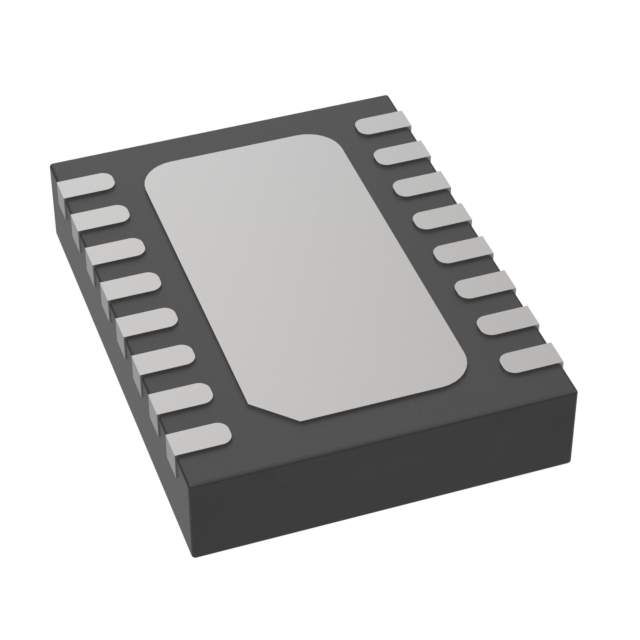

Manufacturer Package 16-WFDFN Exposed Pad
Supplier Device Package 16-DFN (4x3)
Family Part Number LT3055
Manufacturer Pack Quantity 91
MSL Level 1 (Unlimited)
Win Source Part Number 1206611-LT3055IDE#PBF
Manufacturer Homepage www.lineardimensions.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LT3055IDE#PBF CAD Model

Description

Product Overview: LT3055IDE#PBF

The LT3055IDE#PBF is a high-performance, low-noise, low-dropout voltage linear regulator crafted by Linear Technology, now part of Analog Devices. This robust component is designed to deliver up to 500mA of continuous output current with a typical dropout voltage of just 340mV at full load. Its advanced design ensures an optimal balance between high efficiency and low noise operation, making it suitable for sensitive applications where power integrity is crucial.

Key Features

  • Low Noise: The LT3055IDE#PBF boasts an exceptionally low output noise of only 30µVRMS over a 10Hz to 100kHz bandwidth, making it ideal for noise-sensitive applications such as precision instrumentation, RF supply, and audio equipment.
  • Wide Input Voltage Range: With an operating input voltage range from 1.8V to 20V, the regulator provides great flexibility in various system designs and ensures compatibility with a broad spectrum of input sources.
  • Adjustable Output: Users can set the output voltage from 0.6V to 19V, which allows for a high level of customization to meet specific circuit requirements.
  • High Accuracy: The output voltage is accurate to within ±2% over line, load, and temperature variations, ensuring reliable performance in all operating conditions.
  • Stable with Low ESR Capacitors: The LT3055IDE#PBF remains stable with ceramic, tantalum, and aluminum electrolytic capacitors, providing flexibility in choosing output capacitors.
  • Protection Features: It includes built-in protection features such as overcurrent protection, reverse battery protection, and thermal shutdown, enhancing the overall durability and reliability of the regulator.

Applications

The LT3055IDE#PBF is versatile and can be used in a variety of applications, including but not limited to:

  • Medical Equipment
  • Telecommunications
  • Automotive Electronics
  • Portable Devices
  • Power Supply Regulation

This product comes in a robust 12-lead DFN package with an exposed pad for enhanced thermal performance. The LT3055IDE#PBF is a testament to Linear Technology's commitment to providing high-quality power management solutions that cater to the demanding needs of modern electronic systems.
