Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Tube/Rail
Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 6
Operating Input Voltage(Min) 3V
Maximum Supply Voltage 30V
Output Voltage 44V
Channel Output Current 30mA
Frequency 200kHz to 2.5MHz
Dimming Analog, PWM
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)

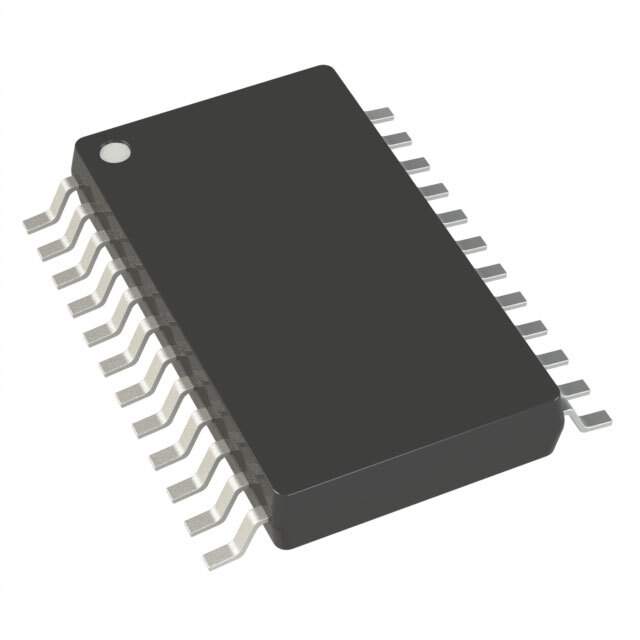

Case / Package 24-TSSOP-EP
Win Source Part Number 94898-LT3598IFE
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LT3598IFE CAD Model

Description

The LT3598IFE is a cutting-edge integrated circuit designed and manufactured by Linear Technology, a company renowned for its high-performance analog integrated circuits. This particular component is a versatile, multi-channel LED driver that is specifically tailored for driving LEDs in a wide array of lighting applications. With its robust feature set and efficient design, the LT3598IFE is an ideal solution for powering medium-sized LED arrays in both portable and fixed power supply scenarios.

Key Features

  • Wide Input Voltage Range: The device is capable of operating from an input voltage range of 4.5V to 36V, making it suitable for a variety of power sources, from single-cell Li-Ion batteries to automotive power systems.
  • Multiple LED Channels: It supports up to six LED channels, each capable of driving up to 10 LEDs in series, providing flexibility for different LED configurations and ensuring uniform brightness across displays.
  • Integrated 2.3A Switch: The LT3598IFE includes an internal 2.3A switch, which helps reduce external component count and system complexity.
  • High Efficiency: With an efficiency rating that can reach up to 91%, this driver conserves power and extends battery life in portable applications.
  • Adjustable Frequency: The switching frequency is adjustable from 200kHz to 2.5MHz, allowing designers to optimize the driver for various applications and minimize potential interference with other system components.
  • Dimming Capabilities: It features both PWM and analog dimming capabilities, offering precise control over LED brightness and enabling dynamic lighting effects.

Applications

The LT3598IFE is exceedingly versatile and can be used in a range of applications. It is particularly well-suited for:

  • Automotive and Avionics Lighting
  • Industrial and Architectural Lighting
  • General Purpose LED Illumination
  • Backlighting for LCD Displays

Quality and Reliability

Linear Technology is committed to the highest standards of quality and reliability. The LT3598IFE is built to meet these stringent requirements, ensuring consistent performance and durability across a wide range of environmental conditions.
