Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Tube/Rail
Status Active
Purpose Step-Down
Topology Buck
Output Type Adjustable
Number of Outputs 1
Minimum Input Voltage 3.6V
Maximum Input Voltage 36V
Nominal Output Voltage (Min/Fixed) 0.79V
Maximum Output Voltage 30V
Output Current 3.5A
Frequency - Switching 230kHz to 2.45MHz
Synchronous Rectifier No
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)

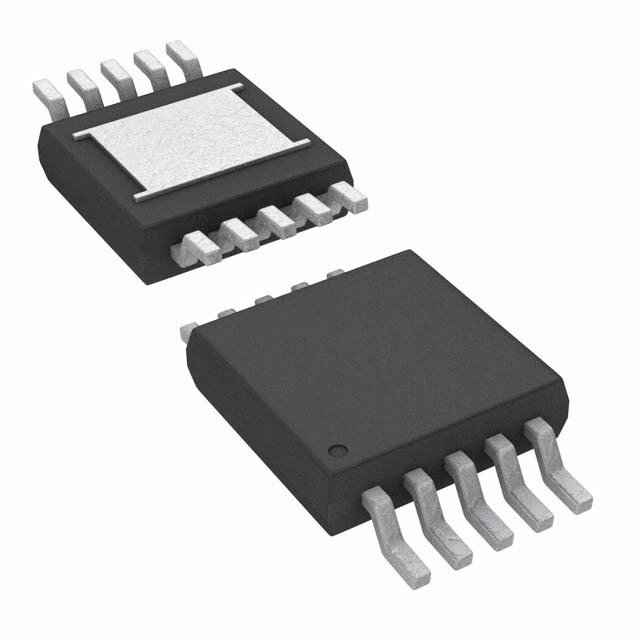

Case / Package 10-MSOP-EP
Win Source Part Number 94908-LT3680HMSE
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Automotive, Portable Devices, Power Management, Industrial
Ultra Librarian 3D Model Ultra Librarian LT3680HMSE CAD Model

Description

LT3680HMSE: A Robust Step-Down Switching Regulator from Linear Technology

The LT3680HMSE is a high-performance, step-down switching regulator designed by Linear Technology, now part of Analog Devices, renowned for its robust power management solutions. This efficient DC-DC converter is capable of delivering up to 3.5A of continuous output current with a wide input voltage range of 3.6V to 36V, making it an excellent choice for a variety of applications, from automotive to industrial systems.

The device operates at a fixed frequency of 400kHz, allowing the use of small, low-cost inductors and capacitors, resulting in a compact, space-saving solution. Furthermore, the LT3680HMSE features a high efficiency of up to 95%, which not only reduces power loss but also minimizes heat generation, thereby enhancing system reliability and lifespan.

One of the key attributes of the LT3680HMSE is its robustness. It is designed with an internal 4.6A switch, which can withstand load dump and reverse battery conditions, ensuring reliable performance even in the most challenging environments. Additionally, its MSOP-16E package is engineered for enhanced thermal performance, providing a solid foundation for applications that demand high power density and thermal efficiency.

The LT3680HMSE also includes a variety of built-in protection features. These include overvoltage protection, overcurrent protection, and thermal shutdown, which safeguard the device and the system it powers from potential damage due to abnormal operating conditions. Moreover, the switching regulator supports adjustable frequency from 250kHz to 2.4MHz or synchronization to an external clock, giving designers increased flexibility in optimizing their power supply designs.

With its adjustable soft-start function, the LT3680HMSE can effectively manage the inrush current at startup, contributing to system stability. The device also provides a power good flag, which signals when the output voltage is within specifications, thus enabling power sequencing and system monitoring for enhanced operational safety.

In summary, the LT3680HMSE from Linear Technology is an exemplary solution for designers seeking a reliable, efficient, and flexible step-down switching regulator capable of withstanding the rigors of high-demand applications.
