Products specifications

Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Reel - TR
Status Active
Type Multi-Voltage Supervisor
Number of Voltages Monitored 2
Output Open Drain or Open Collector
Reset Active Low
Reset Timeout 140 ms Minimum
Voltage - Threshold 2.5V, 3.3V, 5V, Adj
Temperature Range - Operating 0°C to 70°C (TA)
Mounting SMD (SMT)
Case / Package TSOT-23-8
Win Source Part Number 1062150-LTC2906CTS8#TRMPBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LTC2906CTS8#TRMPBF CAD Model

Description

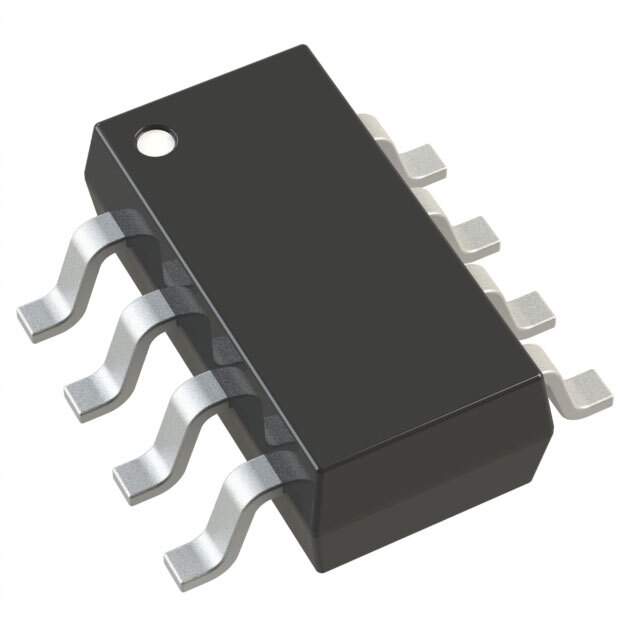

Linear Technology LTC2906CTS8#TRMPBF Precision Dual Voltage Monitor

The LTC2906CTS8#TRMPBF is a high-performance, precision dual voltage monitor designed by Linear Technology, a brand of Analog Devices, to ensure the reliability and stability of power supplies in complex electronic systems. This compact and efficient device is an ideal solution for monitoring system voltages and providing a reliable reset signal to microprocessors or microcontrollers in the event of a power failure or voltage drop.

Encased in a tiny TSOT-23 package, the LTC2906CTS8#TRMPBF is designed to monitor two supply voltages, V1 and V2, which can be either positive or negative. It features a wide operating voltage range, making it suitable for a variety of applications, including portable devices, automotive electronics, and industrial control systems. The device is characterized by its low power consumption, which is crucial for battery-powered applications, and its ability to operate over a broad temperature range, ensuring consistent performance under varying environmental conditions.

One of the key features of the LTC2906CTS8#TRMPBF is its precision voltage threshold accuracy of ±1.5%, which enables precise monitoring and control of the supply voltages. The device also includes a built-in hysteresis function to prevent false triggering, ensuring that the reset signal is only generated when necessary. Additionally, the LTC2906CTS8#TRMPBF offers a selectable reset timeout period, allowing designers to tailor the reset signal duration to the specific needs of their system.

For ease of integration, the LTC2906CTS8#TRMPBF includes an adjustable reset output that can be configured as either push-pull or open-drain, depending on the requirements of the application. The device also features a guaranteed reset output down to VCC = 1V, which is essential for low voltage operation.

Overall, the LTC2906CTS8#TRMPBF from Linear Technology is a robust and precise voltage monitor that provides reliable protection for electronic systems. Its compact size, low power consumption, and high accuracy make it an excellent choice for designers looking to enhance the safety and performance of their power management solutions.
