The LTC3548AEDD#TRPBF is a high-performance, dual-channel synchronous buck regulator from Linear Technology, designed to deliver efficient power conversion for portable devices. This compact and versatile regulator is capable of providing up to 600mA of continuous output current per channel over a wide input voltage range of 2.5V to 5.5V, making it an ideal solution for single-cell Li-Ion/Polymer or multi-cell alkaline/NiMH applications.

One of the standout features of the LTC3548AEDD#TRPBF is its high switching frequency of 2.25MHz, which allows the use of small, low-cost capacitors and inductors, minimizing the overall footprint on the PCB. The high frequency also enables fast transient response and low output voltage ripple.

The device's synchronous operation provides high efficiency over a wide range of load currents. It includes internal switches with low RDS(ON) to minimize unnecessary power loss. The LTC3548AEDD#TRPBF also features a 'Burst Mode' operation that significantly improves efficiency at light loads, further extending battery life in portable applications.

Additional features of the LTC3548AEDD#TRPBF include independent shutdown and soft-start functions for each channel, over-temperature protection, and current mode operation for excellent line and load transient response. The regulator also offers up to 94% efficiency, which is beneficial for heat-sensitive applications.

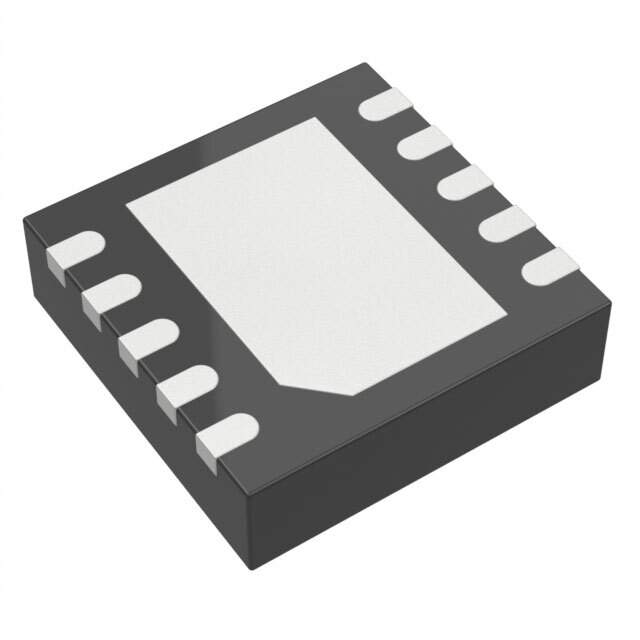

The LTC3548AEDD#TRPBF comes in a compact 10-lead (3mm x 3mm) DFN package, which is suitable for space-constrained applications. The small size and high level of integration make it an excellent choice for portable medical devices, personal multimedia devices, and other battery-powered gadgets where efficiency and space are critical considerations.

Overall, the LTC3548AEDD#TRPBF is a reliable and high-performing power management solution from Linear Technology that provides a dual output capability with the flexibility and efficiency required for modern electronic devices.
