Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Reel - TR
Status Active
Type Buffer, Accelerator
Applications I2C - Hotswap
Input 2-Wire Bus
Output 2-Wire Bus
Data Rate (Max) 400kHz
Number of Channels 2
Capacitance - Input 10pF
Supply Voltage - Operating 2.7 V to 5.5 V
Operating Supply Current 3mA
Temperature Range - Operating -40°C to 85°C

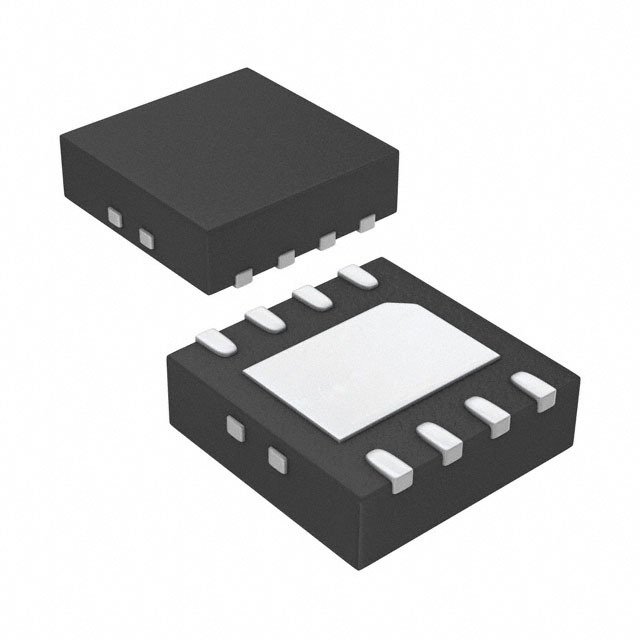

Case / Package 8-DFN (3x3)
Win Source Part Number 072625-LTC4300A-3IDD/TR
Ultra Librarian 3D Model Ultra Librarian LTC4300A-3IDD/TR CAD Model

Description

LTC4300A-3IDD/TR Hot-Swappable 2-Wire Bus Buffer

The LTC4300A-3IDD/TR from Linear Technology is a high-performance, hot-swappable 2-wire bus buffer that enhances the capabilities of an I2C bus by allowing devices to be inserted or removed without disrupting bus continuity. This integrated circuit is designed to improve system reliability and increase flexibility in applications where I2C devices need to be changed during live operation.

Key Features

  • Hot Swap Capability: Enables devices to be inserted or removed from a live I2C bus without turning off the system power or resetting the bus, thus preventing data loss and system downtime.
  • Level Translation: The LTC4300A-3IDD/TR provides bidirectional buffering with no direction pin, allowing it to translate between different voltage levels on the SDA and SCL lines, making it suitable for multi-voltage systems.
  • Stuck Bus Recovery: An internal stuck bus recovery timer supports system reliability by automatically breaking the data and clock lines free if they are stuck low, ensuring the I2C bus remains operational.
  • Prevents Data Corruption: The device's rise time accelerators facilitate fast mode operation, and its built-in capacitance buffering prevents data corruption during live insertion.
  • Flow-Through Pinout: The LTC4300A-3IDD/TR comes with a flow-through pinout that simplifies the PCB layout and reduces signal distortion.

Applications

The LTC4300A-3IDD/TR is ideal for a wide range of applications, particularly where system uptime is critical, and maintenance or upgrades need to be performed without shutting down. Typical applications include:

  • Server and Telecom Hot Board Insertion
  • Capacitance Buffering/Bus Extension
  • Level Translation for 2-Wire Buses
  • Industrial Control Networks

Product Specifications

The LTC4300A-3IDD/TR is available in a small 8-lead MSOP package, making it suitable for space-constrained applications. It operates over the commercial and industrial temperature ranges, ensuring reliability across various environments. The device is also RoHS compliant, aligning with environmental standards for electronic components.

With its robust feature set, the LTC4300A-3IDD/TR is an excellent choice for systems that require seamless I2C bus management and uninterrupted operation.
