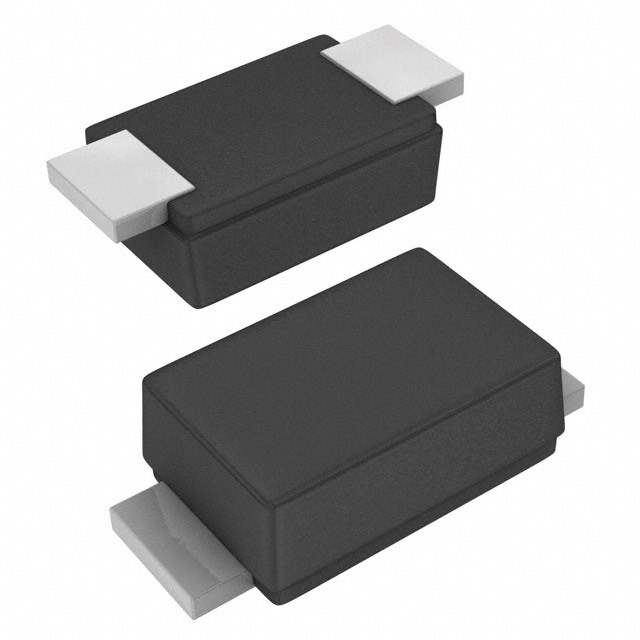

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series SMF
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 45V
Voltage - Breakdown (Min) 50V
Voltage - Clamping (Max) @ Ipp 72.7V
Current - Peak Pulse (10/1000µs) 2.8A
Power - Peak Pulse 200W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123F
Base Product Number SMF45
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 669110-SMF45CA
Ultra Librarian 3D Model Ultra Librarian SMF45CA CAD Model

Description

The SMF45CA is a bidirectional Zener-type TVS diode designed for circuit protection against transient voltage events.

  • Type: Bidirectional Zener TVS Diode
  • Series: SMF
  • Package: SOD-123F
  • Reverse Standoff Voltage: 45V
  • Breakdown Voltage: 50V
  • Clamping Voltage @ a Peak Pulse Power of 200W: 72.7V
  • Channel Count: Single-Channel
  • Peak Pulse Current: 2.8A
  • Application: General Purpose
  • Mounting Style: Surface Mount
  • Manufacturer: Littelfuse Inc.
  • Product Status: Active
  • Operating Temperature Range: -65°C to 150°C
  • REACH: Compliant
  • Prop 65 Warning: May contain substances subject to California Prop 65 warning
