Products specifications

Category Development Boards, Kits, Programmers - Evaluation Boards - Sensors
Mfr Maxim Integrated
Package Box
Product Status Active
Sensor Type Temperature
Sensing Range 0°C ~ 70°C
Interface I2C, Serial
Sensitivity ±0.15°C
Voltage - Supply 1.7V ~ 3.6V
Embedded Yes, MCU, 32-Bit
Supplied Contents Board(s)
Utilized IC / Part MAX30208
Base Product Number MAX30208
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 862721-MAX30208EVSYS#
Ultra Librarian 3D Model Ultra Librarian MAX30208EVSYS# CAD Model

Description

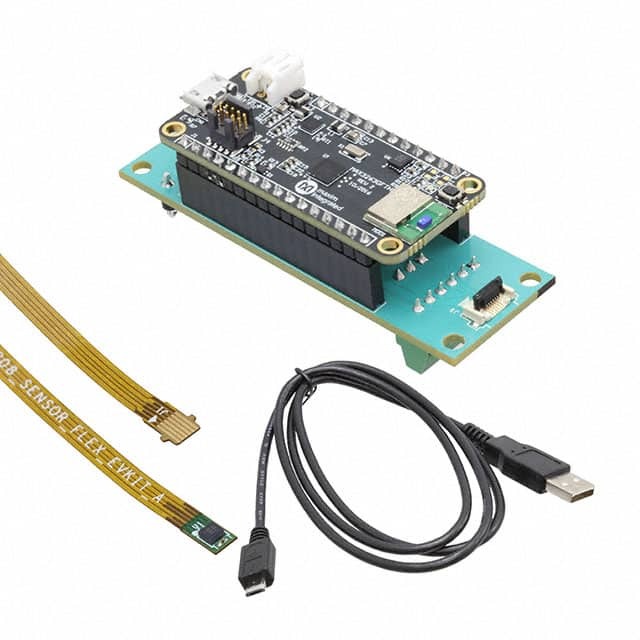

Maxim Integrated MAX30208EVSYS# Evaluation System

The MAX30208EVSYS# is a comprehensive evaluation system from Maxim Integrated designed to facilitate the testing and development of the MAX30208, a high-accuracy, low-power temperature sensor. This sensor is particularly engineered for wearable and healthcare applications, where precise temperature measurements are crucial.

The core component of this evaluation system is the MAX30208 temperature sensor, which boasts an impressive accuracy of ±0.1°C in the range of 37°C to 39°C, making it ideal for monitoring human body temperature. The sensor operates over a wide temperature range of -20°C to +85°C, allowing for versatility in various environments and applications.

The evaluation system includes an easy-to-use evaluation kit that comes with a fully assembled and tested evaluation board. This board can be connected to a computer via a USB interface, enabling developers to interface with the sensor through Maxim Integrated's user-friendly software. The software provides a graphical user interface (GUI) for data logging, real-time temperature monitoring, and analysis, simplifying the process of data collection and interpretation.

Additionally, the MAX30208EVSYS# evaluation system is equipped with a variety of features to support development, such as programmable over-temperature and under-temperature thresholds, which can trigger alerts or actions when temperatures go beyond specified limits. The sensor also supports I2C communication, allowing for easy integration into existing systems.

With its low power consumption, the MAX30208 sensor is optimized for battery-powered applications, ensuring that devices such as smartwatches, fitness trackers, and medical monitoring equipment can operate for extended periods without frequent charging.

In summary, the MAX30208EVSYS# from Maxim Integrated is an essential tool for engineers and developers looking to incorporate accurate temperature sensing into their designs. Its precision, ease of use, and low power consumption make it a top choice for a wide range of applications in the wearable and healthcare sectors.
