Product Overview: MAX3232CUE+ from Maxim Integrated

The MAX3232CUE+ is a remarkable integrated circuit from Maxim Integrated, designed to facilitate reliable communication between a microcontroller and a serial device. This device is part of a family of line drivers and receivers that comply with the stringent specifications of the TIA/EIA-232-F Standard, ensuring compatibility with the RS-232 protocol.

Constructed to operate with a voltage range of 3.0V to 5.5V, the MAX3232CUE+ is versatile, making it suitable for a variety of applications that require low-voltage operation. This feature is particularly beneficial for battery-powered devices, portable applications, and any system where power efficiency is a crucial factor.

The MAX3232CUE+ is capable of achieving data rates up to 250kbps, making it a high-speed transceiver that can handle substantial data throughput. Despite its speed, it maintains a low-power consumption profile, with a typical supply current of only 300µA, which further enhances its suitability for power-sensitive applications.

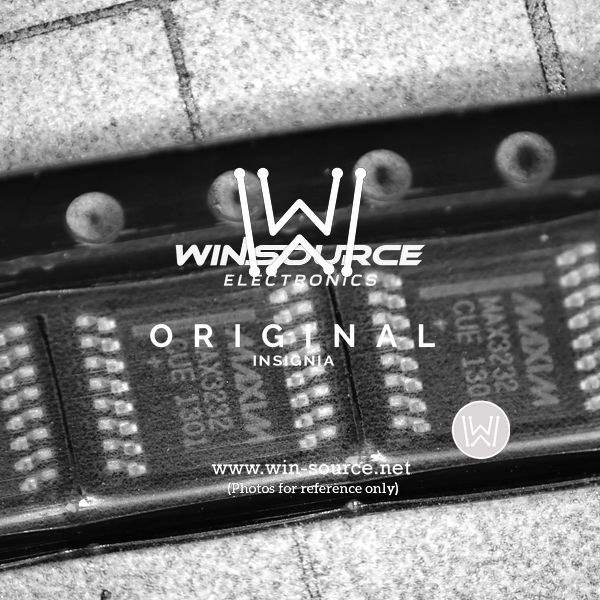

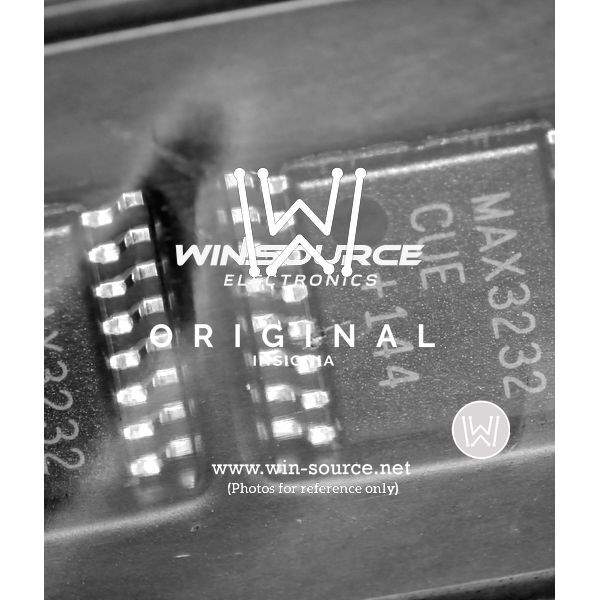

This device comes in a 16-pin TSSOP (Thin Shrink Small Outline Package) that offers a compact footprint, saving valuable board space in space-constrained designs. The MAX3232CUE+ features two drivers and two receivers, allowing for full-duplex communication, which is essential for simultaneous two-way data transmission.

Furthermore, the MAX3232CUE+ incorporates a proprietary low-dropout transmitter output stage, delivering true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump. This charge pump only requires four small 0.1µF external capacitors, which contributes to the overall reduction in board space and component count.

With an extended temperature range of -40°C to +85°C, the MAX3232CUE+ is resilient and can operate in demanding environmental conditions, making it suitable for industrial applications. Its ESD protection exceeds ±15kV using the Human Body Model, providing robustness against electrostatic discharges, which is critical for maintaining the integrity of the communication link in various settings.

The MAX3232CUE+ from Maxim Integrated is an ideal solution for designers looking for a reliable, low-power, and space-efficient serial communication interface for their electronic projects.
