Products specifications

Categories Development Boards, Kits, Programmers
Manufacturer Maxim Integrated
Sensor Type Temperature
Sensing Range 0°C ~ 150°C
Interface I2C, SMBus
Sensitivity ±1°C
Operating Supply Voltage 3 V ~ 3.6 V
Embedded Yes, MCU, 16-Bit
Supplied Contents Board(s), Cable(s)
Utilized IC / Part MAX6639
Win Source Part Number 786808-MAX6639EVKIT+
Popularity Medium
Supply and Demand Status Limited
Family Name MAX6639
Introduction Date January 01, 2009
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MAX6639EVKIT+ CAD Model

Description

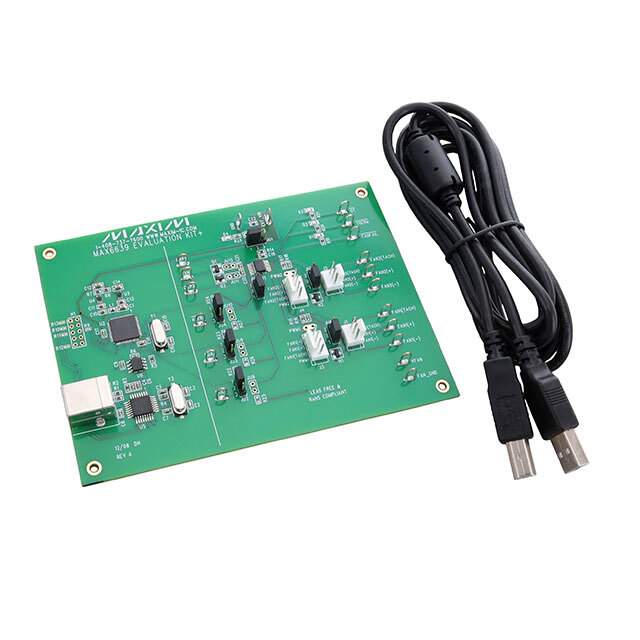

Maxim Integrated MAX6639EVKIT+ Evaluation Kit

The MAX6639EVKIT+ from Maxim Integrated is a comprehensive evaluation kit designed for the MAX6639, a highly accurate, dual-channel temperature sensor. This advanced sensor is capable of monitoring both its own temperature and the temperature of an external diode-connected transistor, which makes it an ideal solution for managing and controlling the temperature in complex electronic systems.

The kit includes an evaluation board that comes preassembled with the MAX6639, allowing engineers and developers to quickly and efficiently test the features and performance of this temperature monitoring IC. The MAX6639's two channels are optimized for precision, with the ability to measure temperature with a resolution of 1°C and an accuracy of ±1°C from 0°C to +70°C.

One of the key features of the MAX6639 is its programmability. The device offers a variety of programmable alarm outputs that can be configured to trigger on certain temperature thresholds, ensuring that systems can respond immediately to potential overheating issues. Additionally, the sensor supports SMBus, I²C, and two-wire interfaces, making it versatile for integration into a wide range of applications.

The evaluation kit is user-friendly, thanks to the included software that runs on Windows-based PCs. The software provides a graphical user interface (GUI) for easy manipulation of the MAX6639's registers and real-time monitoring of temperature readings. Users can experiment with the configuration settings, including setting temperature limits and hysteresis, to best suit their specific application needs.

Designed for flexibility, the MAX6639EVKIT+ is suitable for use in multiple industries and applications, including telecommunications, networking, servers, and industrial systems where precise temperature control is critical for performance and reliability. With its ability to monitor multiple temperature points, the MAX6639 and its evaluation kit are essential tools for engineers looking to optimize thermal management in their designs.

Overall, the MAX6639EVKIT+ is a valuable asset for any developer or engineer looking to harness the advanced capabilities of the MAX6639 temperature sensor and integrate it into their temperature-sensitive applications.
