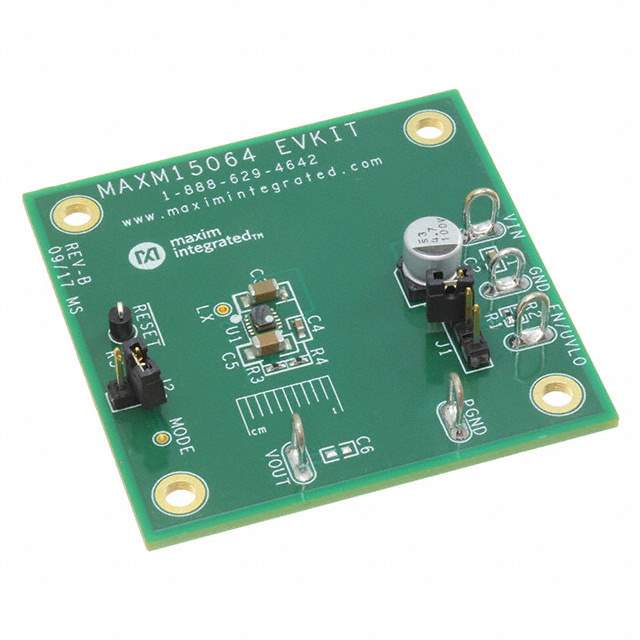

The MAXM15064EVKIT# is an evaluation kit designed by Maxim Integrated to facilitate the testing and performance evaluation of the MAXM15064, a compact, high-efficiency, fixed-frequency, step-down power module. This evaluation kit is an essential tool for engineers and designers who want to implement the MAXM15064 in their power management solutions.

The MAXM15064 power module integrates a controller, MOSFETs, an inductor, and compensation components in a single package to minimize external components and simplify design. With its wide input voltage range and the ability to deliver up to 4A of continuous current, this power module is suitable for a variety of applications, including industrial, communications, and consumer electronics.

Key Features of the MAXM15064EVKIT#

• Integrated Solution: The kit includes the MAXM15064 power module which offers an all-in-one power solution, reducing design complexity and time-to-market.
• Wide Input Voltage Range: Supports an input voltage range from 4.5V to 42V, making it versatile for various applications.
• High-Efficiency Operation: The module's high efficiency reduces power loss and heat generation, enhancing system reliability.
• Adjustable Output Voltage: The output voltage is adjustable, providing flexibility to power a wide range of devices.
• Thermal Protection: The module includes over-temperature protection, safeguarding the system under extreme conditions.
• Compact Size: The small form factor of the module is ideal for space-constrained applications.
• Fully Assembled and Tested: The evaluation kit comes fully assembled and tested, ensuring immediate and reliable operation out of the box.

Applications

The MAXM15064 power module and its evaluation kit are suitable for a wide range of applications, including:

• Point-of-Load (POL) conversions
• FPGA and DSP power supplies
• Industrial control systems
• Automotive infotainment and telematics
• Networking and telecommunications equipment

With the MAXM15064EVKIT#, designers can quickly and effectively demonstrate the capabilities of the MAXM15064 power module, streamline the design process, and accelerate the development of their power management solutions.
