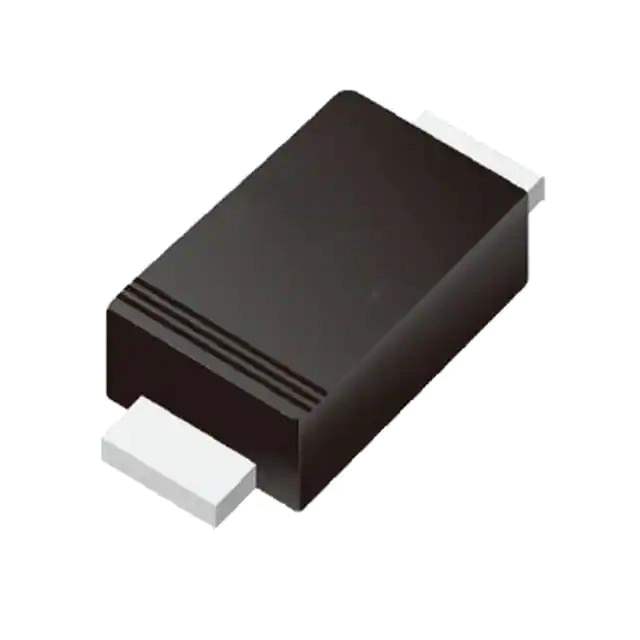

DSK110 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SOD-123FL
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 850 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 100 V
Capacitance @ Vr, F 80pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123FL
Operating Temperature - Junction -55°C ~ 125°C
Standard Package 12,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 587171-DSK110
Ultra Librarian 3D Model Ultra Librarian DSK110 CAD Model

Description

The DSK110 is a Schottky diode designed for rectification and switching applications.

  • Reverse Voltage: It has a maximum reverse voltage rating of 100V and an average rectified current of 1A.
  • Forward Voltage: The forward voltage drop @ 1A is 850mV, and the reverse leakage current @ the maximum reverse voltage is 200µA.
  • Capacitance: With a capacitance of 80pF @ 4V and 1MHz, this diode is suitable for high-frequency applications.
  • Package: The DSK110 is packaged in a surface mount SOD-123FL package, which is compatible with tape and reel packaging for easy handling and assembly.
  • Operating Temperature: It operates in a wide temperature range from -55°C to 125°C, making it suitable for various environments.
  • Series and REACH: The DSK110 is an active product in the MDD series and is unaffected by REACH regulations.
  • Overall: With its fast recovery speed and moderate voltage rating, the DSK110 is a reliable choice for rectification and switching in electronic circuits.
