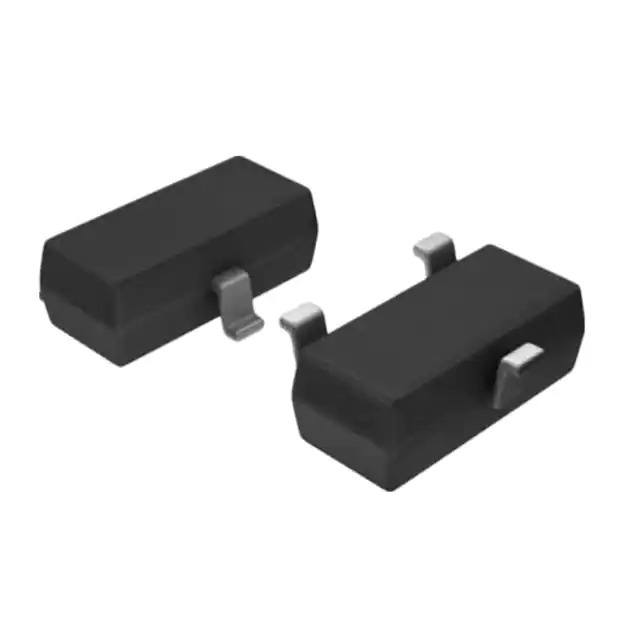

ESD0502TL

Part No ESD0502TL
Manufacturer MDD
Catalog TVS - Diodes
Description TVS DIODE 5VWM 10VC SOT23 / Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23
Datasheet
ESD0502TL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series SOT-23
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 2
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 60W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 0.4pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case SOT-23
Supplier Device Package SOT-23
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1362316-ESD0502TL
Ultra Librarian 3D Model Ultra Librarian ESD0502TL CAD Model

Description

The ESD0502TL is a transient voltage suppressor (TVS) diode designed for circuit protection against transient voltage spikes. Manufactured by MDD, this TVS diode is part of the SOT-23 series.

  • Series: SOT-23
  • Status: Active
  • Package: Tape & Reel
  • Temperature Range: -55°C to 125°C
  • Type: Zener diode
  • Voltage Reverse Standoff: 5V (max)
  • Voltage Breakdown: 6V (min)
  • Peak Pulse Current: 1A (8/20μs)
  • Power Peak Pulse: 60W
  • Protection: Power Line
  • Channels: 2 Unidirectional
  • Mounting Type: Surface Mount
  • Package: SOT-23
