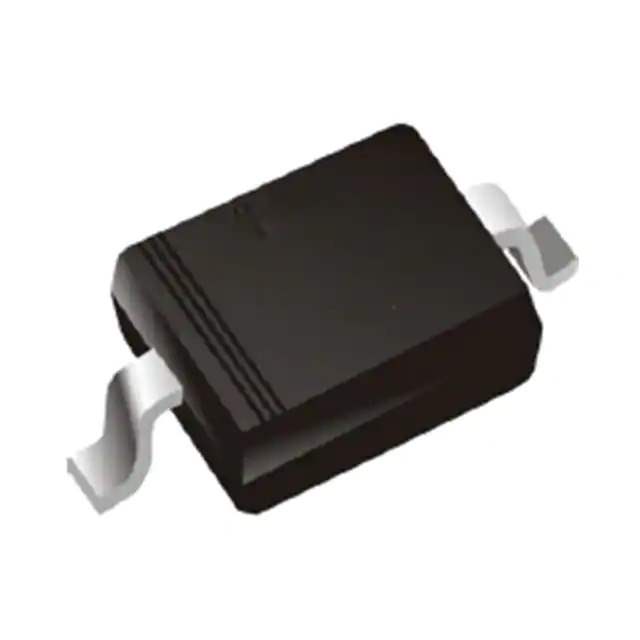

GBLC03C Real Image
Same model may have multiple batches, images only for reference.

GBLC03C

Part No GBLC03C
Manufacturer MDD
Catalog TVS - Diodes
Description TVS DIODE 3VWM 7.0VC SOD323
Datasheet
GBLC03C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series SOD-323
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 3V (Max)
Voltage - Breakdown (Min) 4V
Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 300W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 0.8pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-323
Supplier Device Package SOD-323
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 594265-GBLC03C
Ultra Librarian 3D Model Ultra Librarian GBLC03C CAD Model

Description

The 594265-GBLC03C is a Zener diode in a SOD-323 package.

  • Reverse Standoff Voltage: 3V
  • Breakdown Voltage: 4V
  • Peak Pulse Power: 300W
  • Application: Provides power line protection
  • Capacitance: 0.8pF @ 1MHz
  • Application: Suitable for general purpose applications
  • Peak Pulse Current: 1A
  • Mounting: Surface mountable
  • Package: Tape and reel
  • Operating Temperature: -55°C to 150°C
  • Category: Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
  • Status: Active
