Products specifications

Categories Development Boards, Kits, Programmers
Manufacturer Microchip Technology
Main Purpose DC/DC, Step Down
Outputs and Type 2, Non-Isolated
Voltage - Output 3.3V, 5V
Output Current 1A, 1A
Voltage - Input 4 V ~ 30 V
Regulator Topology Buck
Frequency - Switching 500kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part MCP16311, MCP16312
Win Source Part Number 788274-ADM00467
Popularity Medium
Supply and Demand Status Limited
Family Name ADM00467
Introduction Date December 17, 2013
ECCN EAR99
Estimated EOL Date 2032
Ultra Librarian 3D Model Ultra Librarian ADM00467 CAD Model

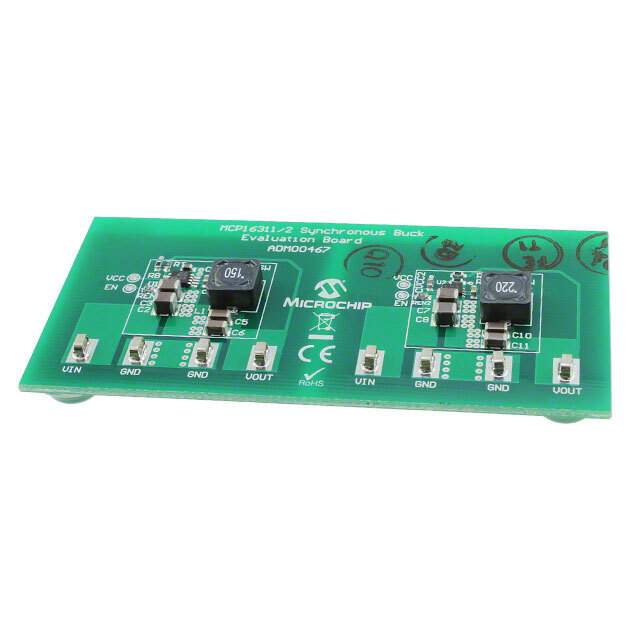

Description

The ADM00467 from Microchip Technology is a highly versatile and innovative development tool designed to assist engineers and developers in the creation and testing of power management applications. This product is part of Microchip's extensive range of evaluation boards, which are renowned for their quality and ease of use.

Key Features

  • Compatibility: The ADM00467 is compatible with a wide range of Microchip's power management ICs, making it an ideal choice for evaluating various power configurations and solutions.
  • Flexibility: With its modular design, the ADM00467 allows for quick swapping of components and adjustment of circuit parameters, providing users with the flexibility needed to prototype and test multiple scenarios.
  • Integrated Debugger: This evaluation board comes with an integrated debugger, which simplifies the process of programming and debugging, thereby accelerating development time.
  • User-Friendly Interface: The ADM00467 features an intuitive interface that enables users to easily monitor and control the power management system under test.

Applications

The ADM00467 is suitable for a broad range of applications, including but not limited to consumer electronics, automotive systems, industrial controls, and telecommunications equipment. Its versatility makes it an essential tool for engineers working on power supply design and optimization.

Technical Support and Resources

Microchip Technology provides extensive technical support for the ADM00467, including detailed documentation, application notes, and software tools. These resources are designed to help users fully leverage the capabilities of the evaluation board and streamline the development process.

Ordering Information

The ADM00467 can be ordered directly from Microchip Technology or through authorized distributors. For more information on purchasing options, pricing, and availability, please visit the Microchip Technology website or contact their sales team.
