Products specifications

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Microchip Technology
Series POWER MOS V®
Package Tube
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 1000 V
Current - Continuous Drain (Id) @ 25°C 34A (Tc)
Rds On (Max) @ Id, Vgs 250mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id 4V @ 5mA
Gate Charge (Qg) (Max) @ Vgs 990 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds 18000 pF @ 25 V
Mounting Type Chassis Mount
Supplier Device Package ISOTOP®
Package / Case SOT-227-4, miniBLOC
Base Product Number APT10025
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 1

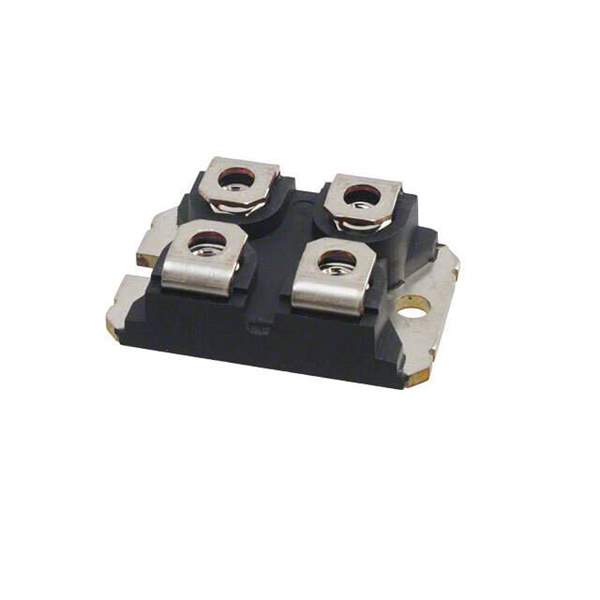

Win Source Part Number 1003503-APT10025JVR
Ultra Librarian 3D Model Ultra Librarian APT10025JVR CAD Model

Description

Microchip Technology's APT10025JVR Power MOSFET

Introducing the APT10025JVR, a state-of-the-art Power MOSFET from Microchip Technology designed for high-efficiency power conversion and management applications. This robust MOSFET is an ideal choice for engineers and designers looking for a reliable and powerful component that can handle demanding electrical environments.

Key Features:

  • High Voltage Tolerance: The APT10025JVR operates at a high drain-source voltage (V<sub>DS), making it suitable for a range of applications that require high voltage operation without compromising performance.
  • Low On-Resistance: With its low on-resistance (R<sub>DS(on)), this MOSFET ensures minimal power loss and improved efficiency, which is critical for power-sensitive designs.
  • Fast Switching: The device is engineered for fast switching speeds, enabling high-frequency operation while reducing switching losses, which is essential for power supply and converter applications.
  • Enhanced Thermal Performance: The APT10025JVR comes in a package that offers excellent thermal performance, ensuring reliability and longevity even under high-temperature conditions.
  • Ruggedness: This Power MOSFET is designed to withstand harsh conditions, making it a reliable choice for industrial, automotive, and other challenging environments.

Applications:

The APT10025JVR is versatile and can be used in a variety of applications, including:

  • Switch Mode Power Supplies (SMPS)
  • DC-DC Converters
  • Motor Drives and Inverters
  • Battery Management Systems
  • Renewable Energy Systems
  • Power Factor Correction (PFC) Circuits

Technical Specifications:

Parameter Value Drain-Source Voltage (V<sub>DS) 1000V Continuous Drain Current (I<sub>D) 23A Power Dissipation (P<sub>D) 470W R<sub>DS(on) 0.25Ω Operating Temperature Range -55°C to +150°C

In conclusion, the APT10025JVR from Microchip Technology is a powerful and efficient Power MOSFET that provides excellent performance for a wide range of high-voltage applications. Its durability, coupled with Microchip's reputation for quality, makes it a top choice for professionals in the electronics industry.
