Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Microchip Technology
Series AVR® ATmega
Package Tray
Product Status Active
Programmable Verified
Core Processor AVR
Core Size 8-Bit
Speed 16MHz
Connectivity I2C, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 23
Program Memory Size 8KB (4K x 16)
Program Memory Type FLASH
EEPROM Size 512 x 8
RAM Size 1K x 8
Voltage - Supply (Vcc/Vdd) 4.5V ~ 5.5V
Data Converters A/D 8x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 32-TQFP
Supplier Device Package 32-TQFP (7x7)
Base Product Number ATMEGA8
Standard Package 250 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 64029-ATmega8-16AU
Ultra Librarian 3D Model Ultra Librarian ATmega8-16AU CAD Model

Description

Microchip Technology's ATmega8-16AU Microcontroller

The ATmega8-16AU from Microchip Technology is a robust 8-bit microcontroller that combines 8KB ISP flash memory with read-while-write capabilities, 512B EEPROM, and 1KB SRAM. The device is designed to operate at a maximum frequency of 16MHz, providing ample processing power for a wide range of applications. Crafted with versatility in mind, the ATmega8-16AU is a perfect choice for projects requiring a balance between power consumption and performance.

This microcontroller is built on the advanced RISC architecture, which enables most instructions to be executed in a single clock cycle. The result is a product that achieves throughputs approaching 1 MIPS per MHz, optimizing the power consumption versus processing speed equation. The ATmega8-16AU is also equipped with an array of features such as 23 general-purpose I/O lines, 32 general-purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts, a serial programmable USART, a byte-oriented 2-wire serial interface, a 6-channel ADC with 10-bit precision, and a programmable watchdog timer with internal oscillator.

Additionally, the ATmega8-16AU supports in-system programming by SPI port, allowing for easy firmware updates. Its on-chip analog comparator and programmable brown-out detection provide further reliability and robustness to the system design. The device operates across a voltage range of 2.7-5.5V, ensuring compatibility with a variety of peripherals and enabling use in systems that demand lower power consumption.

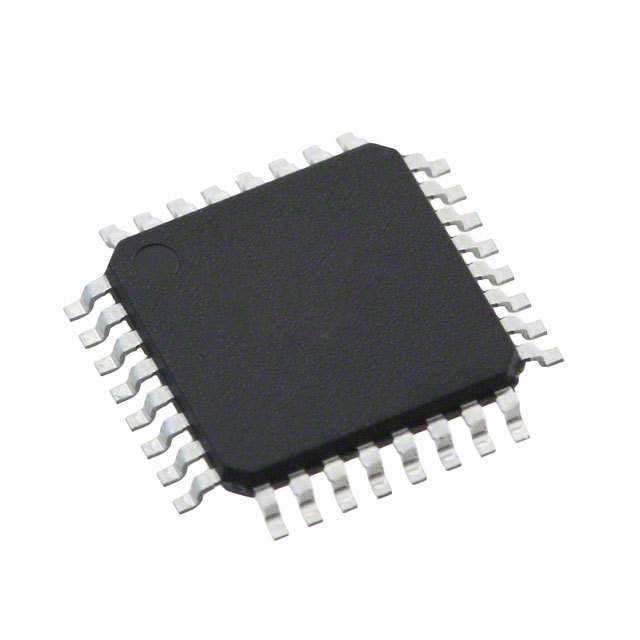

Encased in a 32-lead TQFP package, the ATmega8-16AU is not only powerful but also compact, making it an excellent choice for space-constrained applications. Whether you're working on embedded systems, consumer electronics, or IoT devices, the ATmega8-16AU offers a flexible and efficient solution for your computing needs.

By choosing the ATmega8-16AU, developers gain access to Microchip's extensive support network and resources, including comprehensive datasheets, application notes, and development tools, ensuring a smooth development process from prototype to production.
