Products specifications

Category Crystals, Oscillators, Resonators - Pin Configurable/Selectable Oscillators
Mfr Microchip Technology
Series DSC60XX
Package Tube
Product Status Obsolete
Base Resonator MEMS
Type XO (Standard)
Frequency - Output 1 24MHz, 48MHz
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.3mA (Typ)
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height 0.035" (0.90mm)
Package / Case 4-VDFN
Standard Package 110
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1343236-DSC6021CI2A-00A2
Ultra Librarian 3D Model Ultra Librarian DSC6021CI2A-00A2 CAD Model

Description

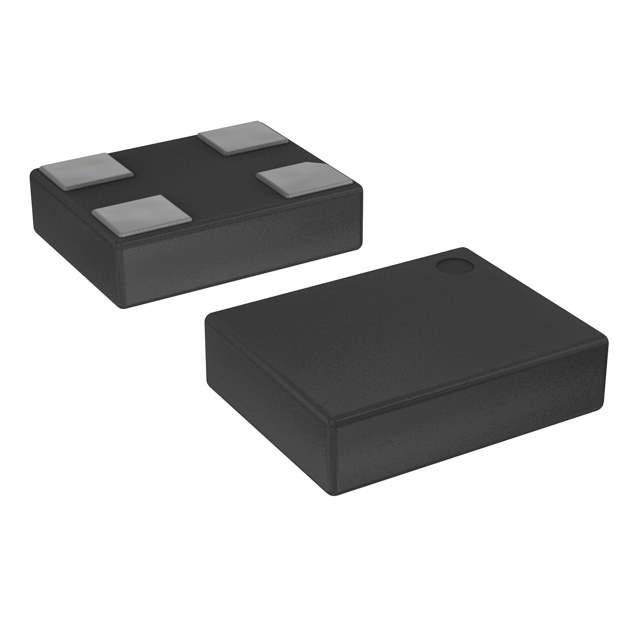

Microchip Technology DSC6021CI2A-00A2

The DSC6021CI2A-00A2 is a high-quality, MEMS oscillator from Microchip Technology, designed to provide a reliable and stable clock source for a wide range of electronic applications. This compact and energy-efficient component is part of Microchip's DSC6000 family, which is known for its exceptional performance in terms of frequency stability and jitter control.

With an operating frequency of 2 MHz, the DSC6021CI2A-00A2 is suitable for use in microcontroller-based systems, IoT devices, and portable electronics where space is at a premium and power consumption needs to be minimized. The oscillator is housed in a small 2.5mm x 2.0mm package, making it an ideal choice for space-constrained applications.

One of the key features of this oscillator is its low power consumption, which is critical for battery-powered devices. It operates with a supply voltage range of 1.71V to 3.63V, providing designers with flexibility in power supply design. Additionally, the DSC6021CI2A-00A2 boasts a low power standby mode, further conserving energy when the oscillator is not in active use.

The DSC6021CI2A-00A2 is also known for its robustness and reliability. It can operate over a wide temperature range of -40°C to +85°C, ensuring consistent performance across various environmental conditions. Moreover, the oscillator is resistant to mechanical shock and vibration, making it suitable for use in industrial and automotive applications where ruggedness is required.

In terms of integration, the DSC6021CI2A-00A2 is designed to be user-friendly. It is available in a standard 4-SMD (Surface Mount Device) footprint, which simplifies the PCB design process and is compatible with standard manufacturing processes. The product also includes an enable/disable function, allowing the user to control the oscillator output, providing additional power-saving opportunities and system control.

Overall, the DSC6021CI2A-00A2 from Microchip Technology is a reliable and versatile MEMS oscillator that offers a blend of performance, power efficiency, and ease of integration, making it an excellent choice for designers looking to optimize their electronic systems.
