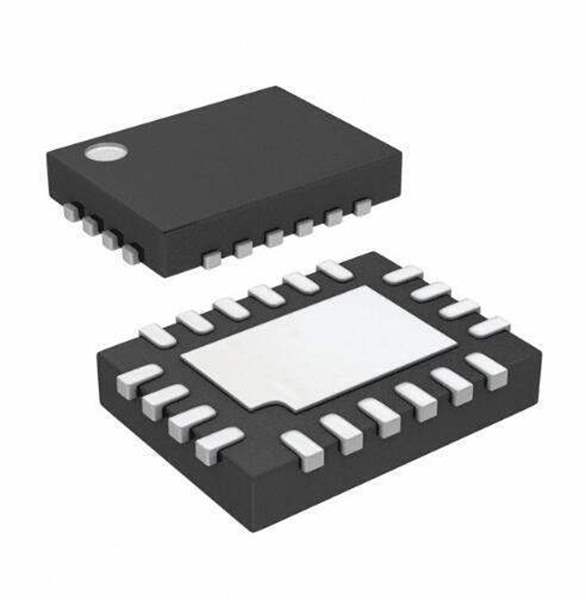

DSC400-4244Q0071KE1Microchip Technology
Same model may have multiple batches, images only for reference.

DSC400-4244Q0071KE1

Part No DSC400-4244Q0071KE1
Manufacturer Microchip Technology
Catalog Pin Configurable/Selectable Oscillators
Description MEMS OSC XO 2.25V-3.6V 20VQFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Microchip Technology
Category Crystals, Oscillators, Resonators Pin Configurable/Selectable Oscillators
Packaging  Tube
Part Status Active
Base Resonator MEMS
Type XO (Standard)
Frequency - Output 1 161.132813MHz
Voltage - Supply 2.25V ~ 3.6V
Frequency Stability ±50ppm
Operating Temperature -20°C ~ 70°C
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Win Source Part Number WS1211493-DSC400-4244Q0071KE1
Ultra Librarian 3D Model Ultra Librarian DSC400-4244Q0071KE1 CAD Model

Description

The DSC400 is a four output crystal-less™ clock generator. It utilizes proven PureSilicon™ MEMS technology to provide excellent jitter and stability while incorporating additional device functionality. The nominal frequencies of the outputs can be identical or independently derived from common PLLs. Each output may be configured independently to support a single-ended LVCMOS interface or a differential interface. Differential options include LVPECL, LVDS, or HCSL.
