Microchip Technology DSC6023MI2A-00A7: Compact, Low-Power MEMS Oscillator

The DSC6023MI2A-00A7 is a cutting-edge MEMS (Micro-Electro-Mechanical Systems) oscillator designed and manufactured by Microchip Technology, a leader in microcontroller, mixed-signal, analog, and Flash-IP solutions. This product is part of the DSC6000 family, which is renowned for its ultra-small, low-power, and highly stable timing solutions.

With a nominal frequency of 32.768 kHz, the DSC6023MI2A-00A7 is an ideal choice for applications that demand a compact and energy-efficient clock source. The oscillator operates at a supply voltage range of 1.71V to 3.63V, which makes it suitable for battery-powered and portable devices, such as wearables, IoT devices, and healthcare monitoring systems.

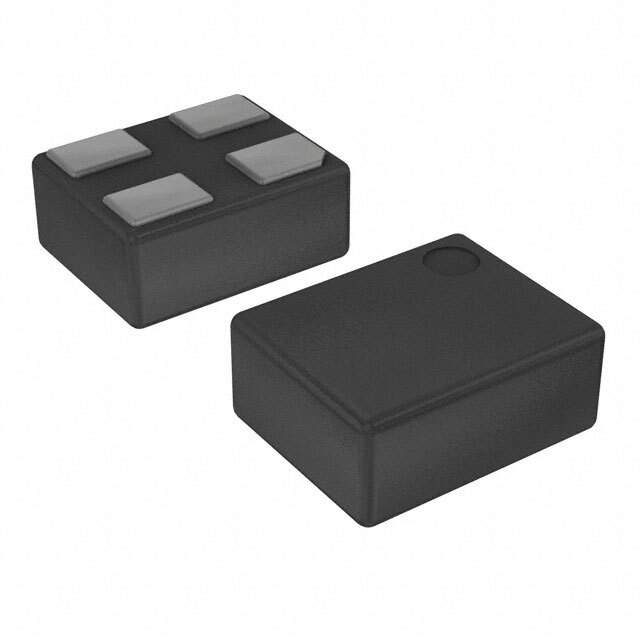

The DSC6023MI2A-00A7 comes in an industry-standard 4-pin 2.0 x 2.5 mm package, which is one of the smallest footprints available for any oscillator. Despite its diminutive size, it offers excellent stability over a wide temperature range (-40°C to +85°C), ensuring reliable performance in diverse operating environments.

One of the key features of this oscillator is its extremely low power consumption, with a typical current draw of only 1.3 μA. This characteristic is particularly beneficial for extending the battery life of portable devices. Additionally, the DSC6023MI2A-00A7 has a fast start-up time of 5 milliseconds, allowing quick wake-up and response in applications that require rapid on-off cycling.

The device also includes an enable/disable feature, which provides further power savings by allowing the oscillator to be turned off when not in use. Moreover, the DSC6023MI2A-00A7 is RoHS compliant and lead-free, highlighting Microchip Technology's commitment to environmental sustainability.

In summary, the DSC6023MI2A-00A7 MEMS oscillator from Microchip Technology is a highly reliable, low-power, and space-saving timing solution, perfect for modern electronic applications where efficiency and compactness are paramount.
