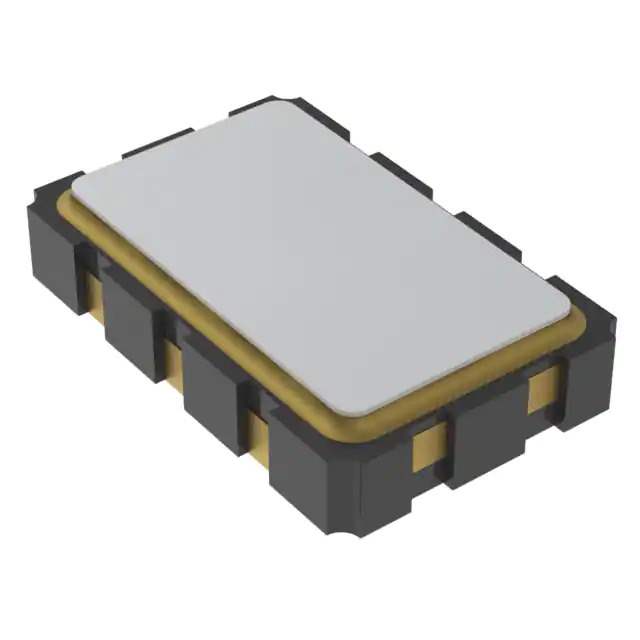

Same model may have multiple batches, images only for reference.

516FHA000260BAG

Name: 516FHA000260BAG
Brand: Skyworks Solutions Inc.
SKU: 856381
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	516FHA000260BAG
Manufacturer	Skyworks Solutions Inc.
Catalog	Pin Configurable/Selectable Oscillators
Description	XTAL OSC VCXO 2.5V 6SMD
Datasheet	516FHA000260BAG Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Crystals, Oscillators, Resonators - Pin Configurable/Selectable Oscillators
Mfr	Skyworks Solutions Inc.
Series	Si516
Package	Strip
Product Status	Active
Base Resonator	Crystal
Type	VCXO
Frequency - Output 1	148.35165MHz, 148.5MHz
Function	Enable/Disable
Output	LVDS
Voltage - Supply	2.5V
Frequency Stability	±20ppm
Temperature Range - Operating	-40°C ~ 85°C
Current - Supply (Max)	26mA
Size / Dimension	0.197" L x 0.126" W (5.00mm x 3.20mm)
Height	0.052" (1.33mm)
Package / Case	6-SMD, No Lead
Current - Supply (Disable) (Max)	22 mA
Base Product Number	516FHA
Standard Package	200 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	856381-516FHA000260BAG
Ultra Librarian 3D Model	Ultra Librarian 516FHA000260BAG CAD Model

Alternative Products

Description

The 856381-516FHA000260BAG is a pin configurable/selectable oscillator from the Si516 series.

Series: Si516
Type: VCXO
Category: Crystals, Oscillators, and Resonators
Feature: Enabled/Disabled
Output: LVDS
Height: 0.052 inches (1.33mm)
Frequency Stability: ±20ppm
Max Supply Current: 26mA
Supply Voltage: 2.5V
Mounting Type: Surface Mountable
Package: 6-SMD, no lead
Operating Temperature: -40°C to 85°C
Product Status: Active
Package: Strip (200 pieces)
Manufacturer: Skyworks Solutions Inc.
