Products specifications

Category Crystals, Oscillators, Resonators - Programmable Oscillators
Mfr Microchip Technology
Series DSC61XX
Package Bulk
Product Status Obsolete
Base Resonator MEMS
Type XO (Standard)
Available Frequency Range 1 MHz ~ 100 MHz
Function Standby
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability (Total) ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 3mA (Typ)
Ratings AEC-Q100
Mounting Type Surface Mount

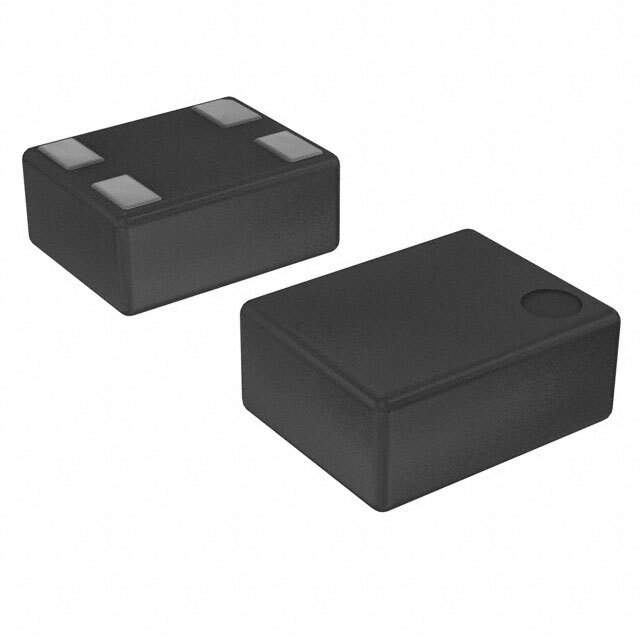

Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.035" (0.89mm)
Current - Supply (Disable) (Max) 12 µA
Standard Package 1
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1343013-DSC6112MI1A-PROGRAMMABLE
Ultra Librarian 3D Model Ultra Librarian DSC6112MI1A-PROGRAMMABLE CAD Model

Description

Microchip Technology's DSC6112MI1A-PROGRAMMABLE Oscillator

The DSC6112MI1A-PROGRAMMABLE from Microchip Technology is a cutting-edge, low-power, precision silicon MEMS oscillator designed to meet the stringent demands of modern electronic devices. This highly versatile and programmable oscillator is a perfect solution for engineers looking to optimize their system performance with a reliable and stable clock source.

This MEMS oscillator offers a programmable frequency range that allows designers to fine-tune their applications with precision. The frequency customization can be carried out with ease, ensuring that the oscillator perfectly matches the specific requirements of the application it is being used in. This programmability is a significant advantage, providing flexibility and reducing the need for multiple discrete components.

With its compact 2.5mm x 2.0mm footprint, the DSC6112MI1A-PROGRAMMABLE is a space-saving solution that is ideal for space-constrained applications. Despite its small size, it does not compromise on performance, offering excellent stability and jitter control, which is crucial for high-speed digital signal processing and communication protocols.

The oscillator operates over a wide temperature range, ensuring reliable performance under varying environmental conditions. This makes it suitable for industrial, automotive, and consumer electronics where temperature fluctuations are a common challenge.

Additionally, the DSC6112MI1A-PROGRAMMABLE boasts low power consumption, making it an eco-friendly choice for battery-powered devices. Its power efficiency contributes to extended battery life and reduced energy costs, which is increasingly important in today's energy-conscious market.

Microchip Technology's commitment to quality ensures that the DSC6112MI1A-PROGRAMMABLE oscillator is manufactured to the highest standards, providing designers with a robust and durable component that they can depend on. Whether it's for networking equipment, portable electronics, or embedded systems, this MEMS oscillator is an ideal choice for a wide range of applications that require a stable and precise clock source.

With its programmability, small size, and high performance, the DSC6112MI1A-PROGRAMMABLE from Microchip Technology represents a smart choice for designers looking to enhance their products with a reliable and efficient timing solution.
