Products specifications

Categories Integrated Circuits (ICs)
Manufacturer Microchip Technology
Packaging Tube
Number of I/O 8
Interface SPI
Interrupt Output Yes
Features POR
Output Type Push-Pull
Current - Output Source/Sink 25mA
Clock Frequency 10MHz
Operating Supply Voltage 1.8 V ~ 5.5 V
Operating Temperature Range -40°C ~ 125°C
Mounting SMD
Package 20-SSOP (0.209", 5.30mm Width)
Manufacturer Package 20-SSOP
Win Source Part Number 788292-MCP23S08-E/SS
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MCP23S08-E/SS CAD Model

Description

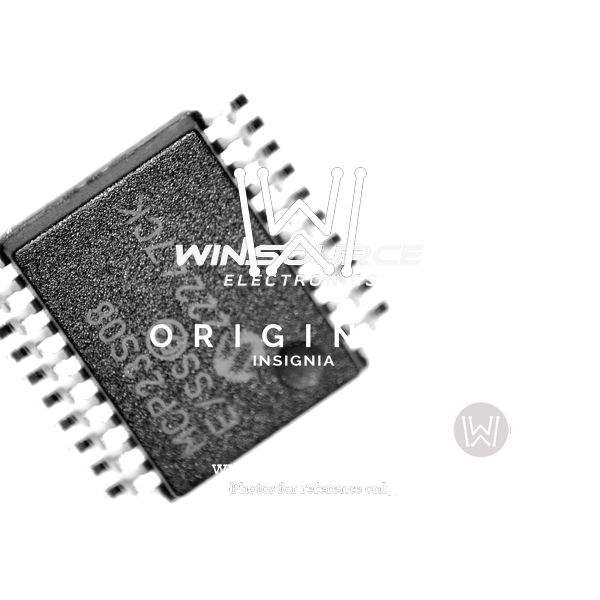

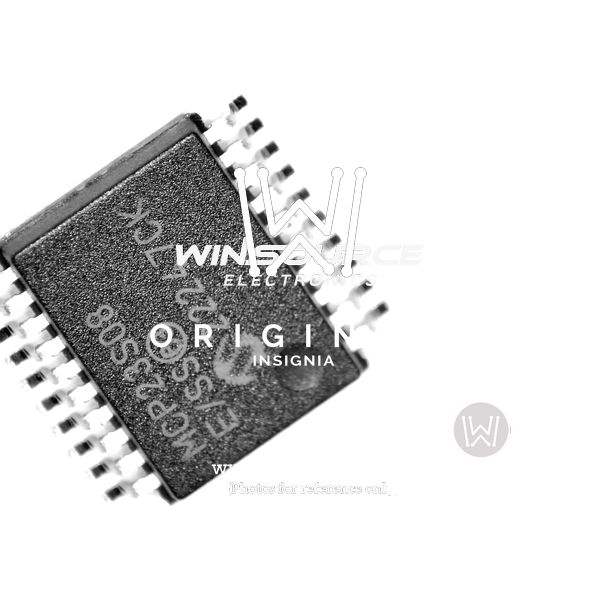

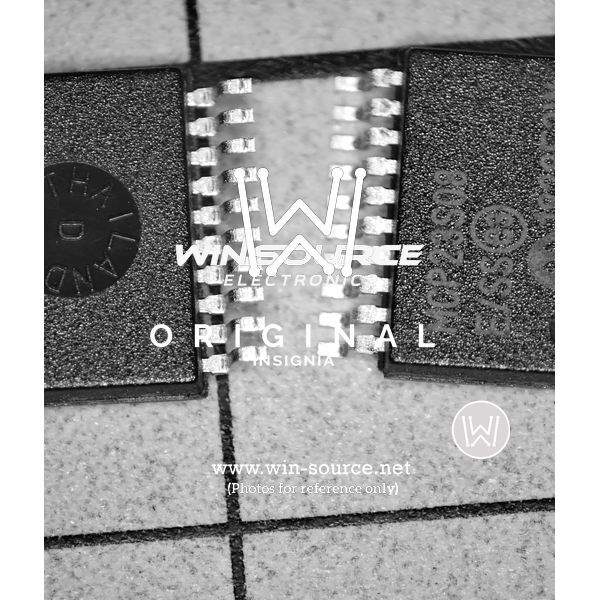

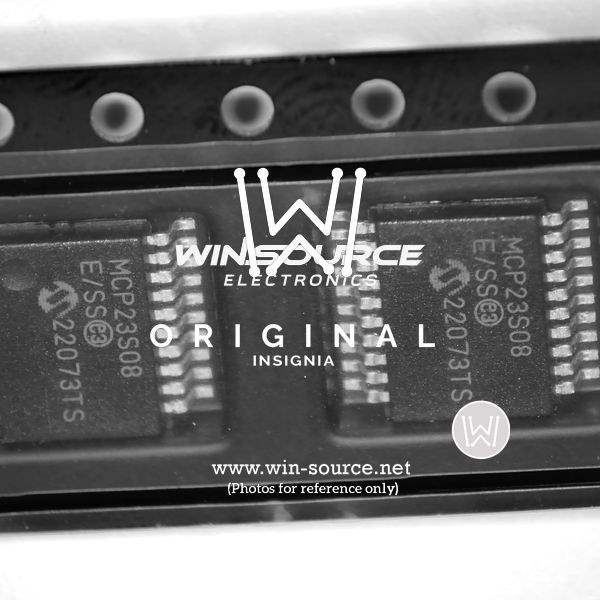

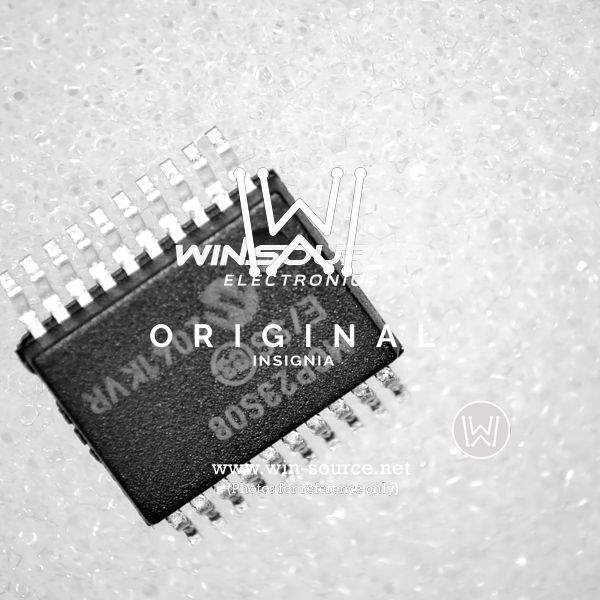

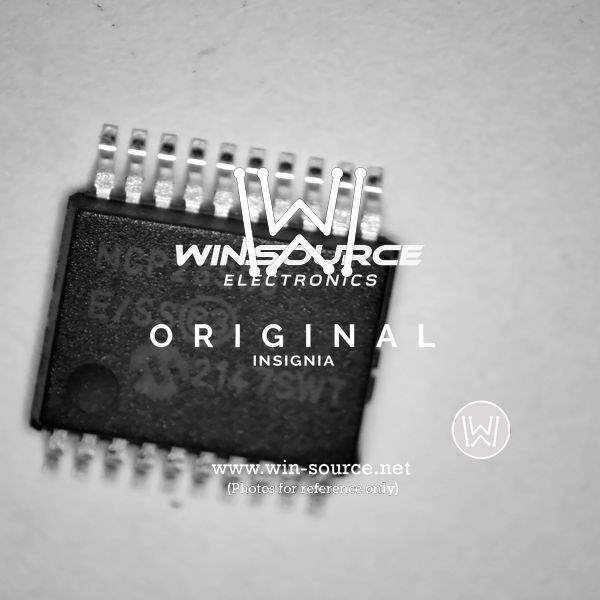

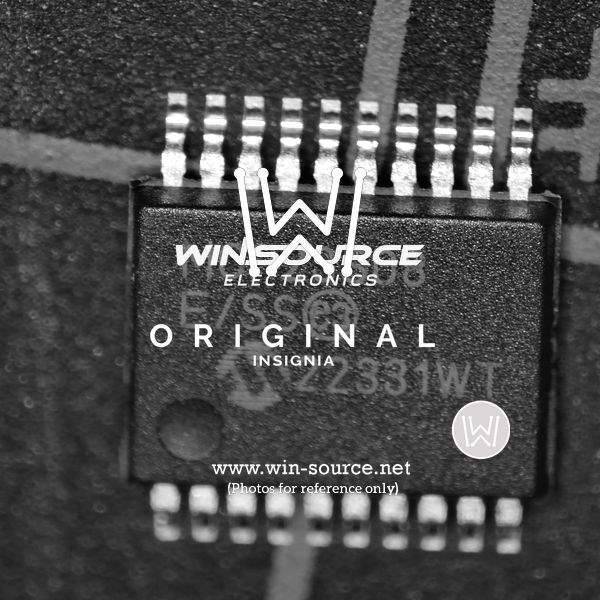

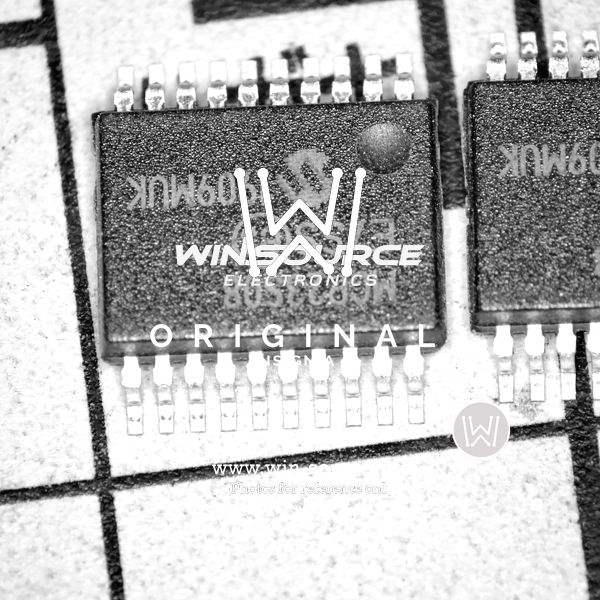

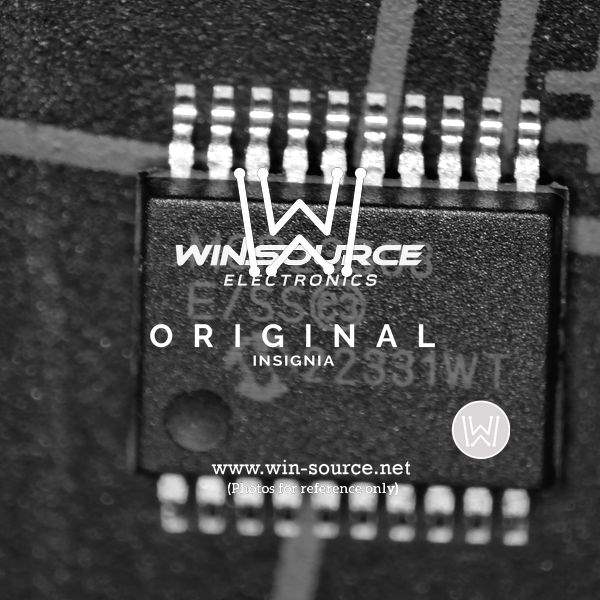

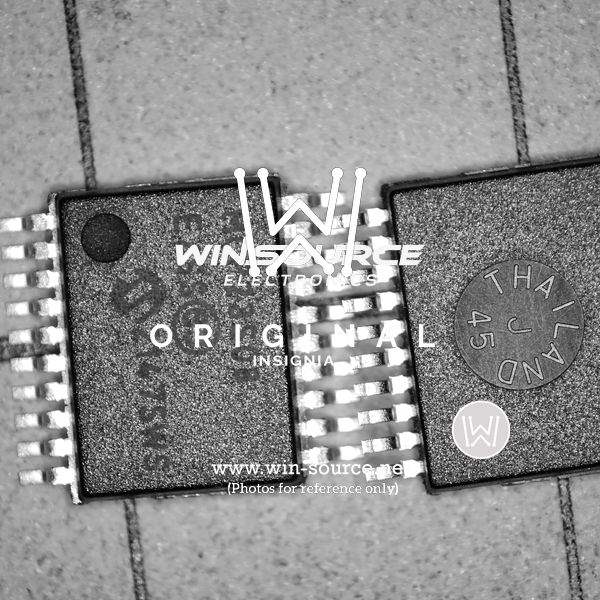

Microchip Technology's MCP23S08-E/SS: 8-Bit I/O Expander with Serial Interface

The MCP23S08-E/SS is a versatile 8-bit I/O (Input/Output) expander from Microchip Technology, designed to provide additional I/O capabilities to a microcontroller via the SPI (Serial Peripheral Interface) bus. This integrated circuit is particularly useful in applications where extra GPIOs (General Purpose Input/Output) are needed, making it an ideal choice for expanding the functionality of microcontroller-based systems.

This I/O expander comes in a compact SSOP (Shrink Small Outline Package) form factor, which is both space-efficient and suitable for automated assembly processes. The part number suffix 'E' indicates the extended temperature range, ensuring reliable performance under varying environmental conditions, which is crucial for industrial and automotive applications.

Key Features of the MCP23S08-E/SS:

  • 8-bit I/O Expansion: Provides eight additional I/O ports that can be individually configured as input or output, offering flexibility for a wide range of applications.
  • Serial Interface: The device uses the SPI protocol for communication, which enables high-speed data transfer and easy interfacing with most microcontrollers.
  • Interrupt Output: An interrupt output pin can be configured to alert the host microcontroller of input changes, reducing the need for continuous polling and saving power.
  • Configurable Polarity: Input polarity inversion registers allow users to adapt the I/O expander to their specific needs without altering the logic in their firmware.
  • Addressing Flexibility: Up to four MCP23S08-E/SS devices can share the same SPI bus, thanks to three hardware address pins, enabling control of up to 32 I/Os.
  • Extended Temperature Range: The device operates reliably over an extended temperature range, making it suitable for harsh environments.

The MCP23S08-E/SS is a practical solution for system designers looking to increase the I/O capabilities of their projects without the need for larger microcontrollers or additional boards. Its robust feature set and ease of integration make it a popular choice for expanding the functionality of embedded systems in a wide array of industries, including automotive, consumer electronics, and industrial automation.

For detailed technical specifications, pin configurations, and application examples, visit the Microchip Technology website or refer to the MCP23S08-E/SS datasheet.
