Products specifications Report Issue?

Category Integrated Circuits (ICs)>Data Acquisition - Digital to Analog Converters (DAC)
Mfr Microchip Technology
Package Tape & Reel
Number of Bits 8
Number of D/A Converters 1
Settling Time 4.5µs (Typ)
Output Type Voltage - Buffered
Differential Output No
Data Interface SPI
Reference Type Internal
Voltage - Supply, Analog 2.7V ~ 5.5V
Voltage - Supply, Digital 2.7V ~ 5.5V
INL/DNL (LSB) ±0.25, ±0.2
Architecture String DAC
Temperature Range - Operating -40°C ~ 125°C

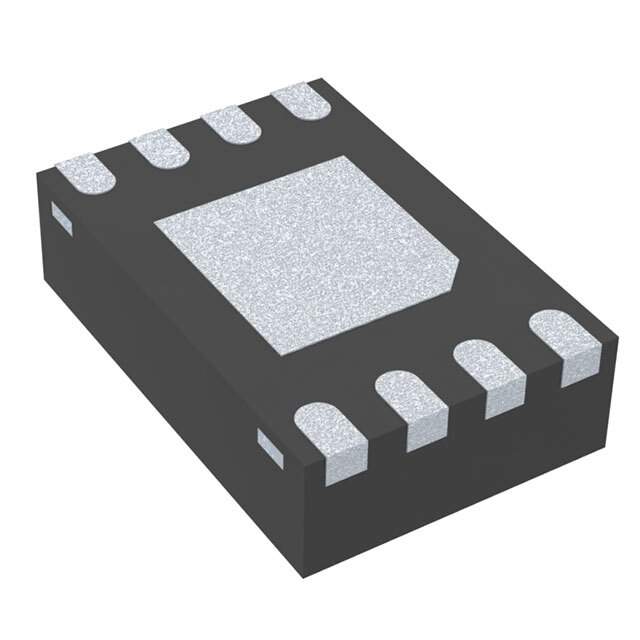

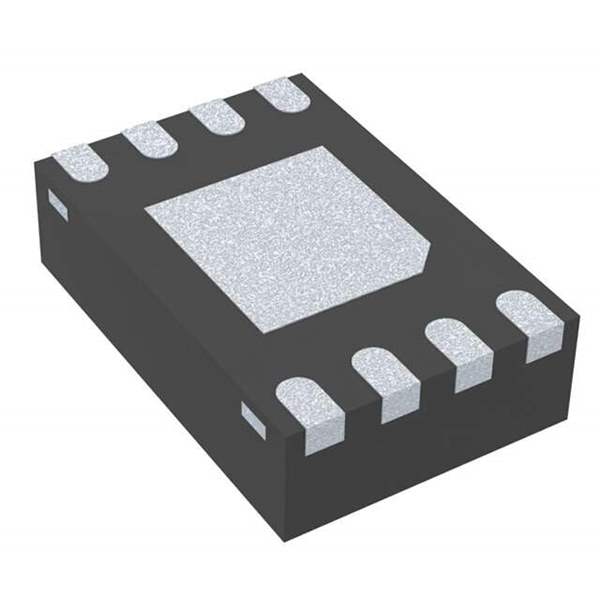

Package / Case 8-VFDFN Exposed Pad
Supplier Device Package 8-DFN (2x3)
Mounting SMD (SMT)
Base Product Number MCP4801
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names MCP4801T-E/MCCT,MCP4801T-E/MC-ND,MCP4801T-E/MCTR,MCP4801T-E/MCDKR
Standard Package 3,300
Win Source Part Number 964036-MCP4801T-E/MC
Ultra Librarian 3D Model Ultra Librarian MCP4801T-E/MC CAD Model

Description

Microchip Technology MCP4801T-E/MC Digital-to-Analog Converter

The MCP4801T-E/MC is a remarkable 8-bit digital-to-analog converter (DAC) component designed and manufactured by Microchip Technology, a leader in providing smart, connected, and secure embedded control solutions. This DAC is part of Microchip's MCP4801 series, which is known for its high accuracy and performance in a compact form factor.

Key Features:

  • Resolution: The MCP4801T-E/MC offers an 8-bit resolution, providing fine granularity with 256 discrete levels of analog output, which is ideal for applications requiring precise control over analog signals.
  • Output Type: It features a buffered voltage output, ensuring a stable and consistent analog signal that is less susceptible to noise and other external interference.
  • Reference Voltage: The device has an external voltage reference input, giving designers flexibility in setting the full-scale output voltage to match the needs of the specific application.
  • Interface: Communication with microcontrollers or other digital systems is seamless, thanks to its SPI-compatible serial interface, which allows for easy integration into a wide range of electronic designs.
  • Supply Voltage: Operating with a single 2.7V to 5.5V power supply, the MCP4801T-E/MC is versatile for use in both 3.3V and 5V logic environments, making it suitable for a variety of power-sensitive applications.
  • Package: This DAC comes in a compact 8-pin MSOP package, which is ideal for space-constrained applications without compromising on performance.

Applications:

The MCP4801T-E/MC is well-suited for a variety of applications, including but not limited to:

  • Portable battery-powered devices
  • Data acquisition systems
  • Analog level adjustment
  • Programmable voltage and current sources
  • Motor control and robotics

Conclusion:

With its high level of integration, the MCP4801T-E/MC from Microchip Technology is a highly efficient and reliable solution for converting digital values into precise analog voltages. It is an excellent choice for designers who require an easy-to-use DAC with a small footprint, without sacrificing performance or flexibility.
