Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Reel - TR
Status Active
Type Simple Reset/Power-On Reset
Number of Voltages Monitored 1
Output Push-Pull, Totem Pole
Reset Active Low
Reset Timeout 140 ms Minimum
Voltage - Threshold 2.63V
Temperature Range - Operating -40°C to 125°C (TA)
Mounting SMD (SMT)
Case / Package SOT-143
Win Source Part Number 094430-TC1270ARVRCTR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TC1270ARVRCTR CAD Model

Description

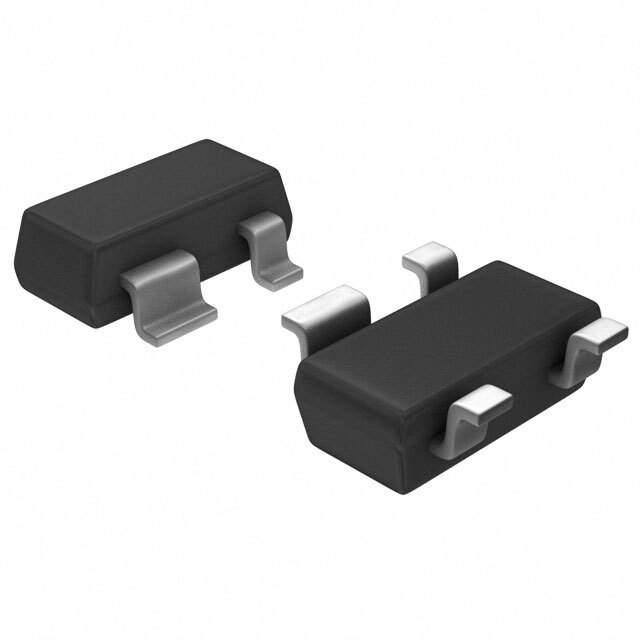

Microchip Technology TC1270ARVRCTR Voltage Supervisor

The TC1270ARVRCTR is a high-quality voltage supervisor component designed and manufactured by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This compact and efficient device is engineered to monitor the supply voltage of microprocessors (µP) and digital systems, providing a reliable reset signal to these systems during power-up, power-down, and brown-out conditions. The TC1270ARVRCTR ensures that the µP boots up in a predictable state every time, enhancing the overall system reliability.

With a precision voltage monitoring feature, the TC1270ARVRCTR is capable of detecting under-voltage conditions with an accuracy of ±1.5%, which is essential for sensitive electronic equipment that requires consistent power levels for optimal performance. The device operates over a voltage range of 1.0V to 5.5V, making it versatile for a wide array of applications, including consumer electronics, automotive, industrial control systems, and Internet of Things (IoT) devices.

The TC1270ARVRCTR offers several key features that make it an indispensable component for circuit protection. It has an active-low RESET output, which remains asserted until the supply voltage reaches the reset voltage threshold and maintains stability for the reset timeout period. This ensures that the system has sufficient time to stabilize before the processor starts operating. Additionally, the device includes a manual reset input that allows for a system reset to be triggered with an external pushbutton or logic signal, providing an extra layer of control for the user.

Designed for convenience and ease of integration, the TC1270ARVRCTR comes in a compact SOT-23 package, allowing it to fit into space-constrained applications without compromising performance. It is also characterized for operation from -40°C to +125°C, ensuring reliability across a broad range of environmental conditions.

Overall, the Microchip Technology TC1270ARVRCTR voltage supervisor is a robust solution for managing power supply integrity, offering both precision and flexibility to designers looking to safeguard their digital systems against power-related anomalies.
