Products specifications Report Issue?

Category Integrated Circuits (ICs)>Data Acquisition - Digital to Analog Converters (DAC)
Mfr Microchip Technology
Package Tape & Reel (TR)
Number of Bits 8
Number of D/A Converters 1
Settling Time 4.5µs (Typ)
Output Type Voltage - Buffered
Differential Output No
Data Interface SPI
Reference Type External
Voltage - Supply, Analog 2.7V ~ 5.5V
Voltage - Supply, Digital 2.7V ~ 5.5V
INL/DNL (LSB) ±0.25, ±0.2
Architecture String DAC
Temperature Range - Operating -40°C ~ 125°C

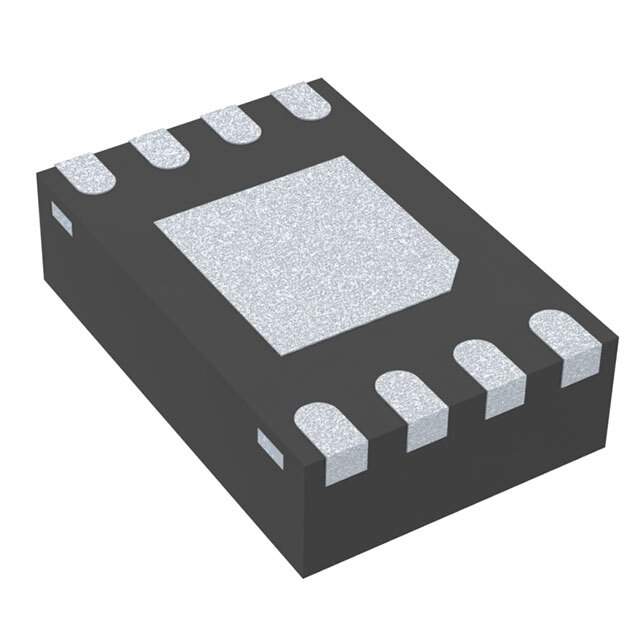

Package / Case 8-VFDFN Exposed Pad
Supplier Device Package 8-DFN (2x3)
Mounting SMD (SMT)
Base Product Number MCP4901
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 3,300
Win Source Part Number 1020031-MCP4901T-E/MC
Ultra Librarian 3D Model Ultra Librarian MCP4901T-E/MC CAD Model

Description

Microchip Technology MCP4901T-E/MC Product Overview

The MCP4901T-E/MC is a single-channel, 8-bit Digital-to-Analog Converter (DAC) from the renowned manufacturer Microchip Technology, designed for precision conversion of digital information into analog signals. This compact and efficient component is an ideal choice for applications where space and power consumption are critical considerations.

Featuring a simple SPI interface for communication, the MCP4901T-E/MC allows for seamless integration into a variety of microcontroller-based systems. The device operates over a broad voltage range of 2.7V to 5.5V, making it versatile for both 3.3V and 5V logic systems. Its low-power consumption and on-chip voltage reference minimize the need for external components, thus simplifying design and reducing overall system cost.

The MCP4901T-E/MC boasts a Rail-to-Rail output which extends the output swing to the full supply voltage range, maximizing dynamic range and enhancing performance for audio applications, instrumentation, and control systems. The fast settling time and high accuracy of the DAC ensure reliable and consistent analog outputs, which is critical for sensitive applications.

This device comes in an 8-pin MSOP package, offering a compact footprint that is highly beneficial for space-constrained applications. It is characterized for operation over the extended temperature range of -40°C to +125°C, ensuring reliable performance in harsh environments.

The MCP4901T-E/MC is an excellent choice for designers looking for an easy-to-use, cost-effective DAC solution for industrial automation, consumer electronics, portable devices, and other applications where efficient digital-to-analog conversion is required. With Microchip's reputation for quality and support, this product stands as a robust link in the signal chain of any modern electronic system.

Key Features:

  • 8-bit resolution
  • Single-channel output
  • SPI interface
  • 2.7V to 5.5V operating range
  • Rail-to-Rail output
  • Low-power consumption
  • On-chip voltage reference
  • Extended temperature range: -40°C to +125°C
  • 8-pin MSOP package
