Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation and Demonstration Boards and Kits
Mfr STMicroelectronics
Package Bulk
Product Status Active
Type Power Management
Function Motor Controller/Driver
Embedded No
Utilized IC / Part L6235
Primary Attributes Motors (BLDC)
Supplied Contents Board(s)
Secondary Attributes Over Current and Temperature Protection
Base Product Number EVAL6235
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 871278-EVAL6235Q
Ultra Librarian 3D Model Ultra Librarian EVAL6235Q CAD Model

Description

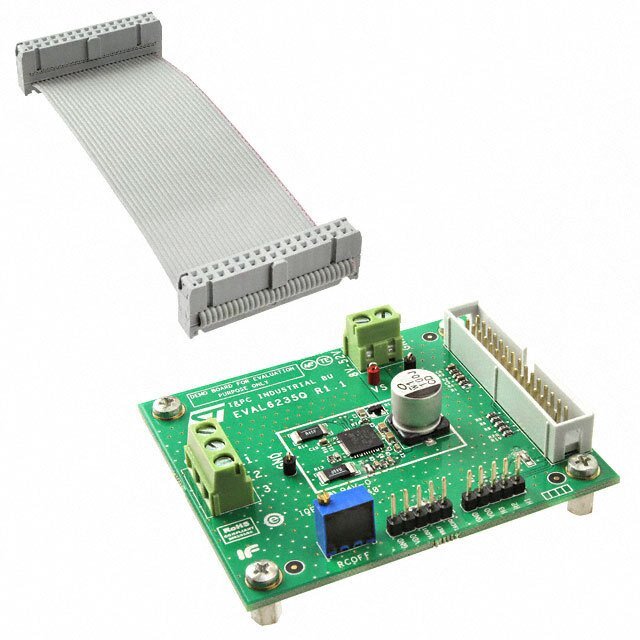

EVAL6235Q - STMicroelectronics Product Overview

The EVAL6235Q from STMicroelectronics is a high-performance evaluation board designed for motor control applications. This evaluation board is tailored to drive three-phase brushless DC motors, offering engineers and developers a robust platform to test and optimize their motor control solutions. The EVAL6235Q is built around the L6235Q, a DMOS fully integrated three-phase motor driver with overcurrent protection, which makes it an ideal choice for applications requiring reliability and efficiency.

The board is capable of delivering up to 2.8A of output current (peak) and operates within a supply voltage range from 8V to 52V, ensuring flexibility in accommodating various motor specifications and power requirements. Its integrated power stage features low RDS(on) MOSFETs, which contribute to reduced power dissipation and improved thermal efficiency.

One of the key features of the EVAL6235Q is its user-friendly interface that allows for easy connection to a microcontroller via input/output pins. It also includes a range of diagnostic features such as thermal shutdown, under-voltage lockout, and non-dissipative overcurrent protection, which contribute to the safety and longevity of both the motor and the evaluation board itself.

Developers can take advantage of the board's cross-conduction protection, which prevents accidental simultaneous conduction of the high-side and low-side switches. This feature is crucial for preventing potential damage to the motor driver and ensuring smooth operation of the motor. Additionally, the EVAL6235Q comes equipped with a programmable off-time PWM current controller that allows for precise adjustment of the motor current and torque.

The EVAL6235Q is a versatile tool for rapid prototyping and testing, suitable for a wide range of applications including robotics, automation systems, and industrial drives. Its compact design and comprehensive feature set make it an excellent starting point for engineers looking to develop or enhance their motor control projects with a reliable and high-performing solution from STMicroelectronics.

For developers looking to jump-start their motor control applications, the EVAL6235Q evaluation board is supported by extensive documentation, including datasheets, application notes, and design guidelines, providing all the necessary information to ensure a successful implementation.
