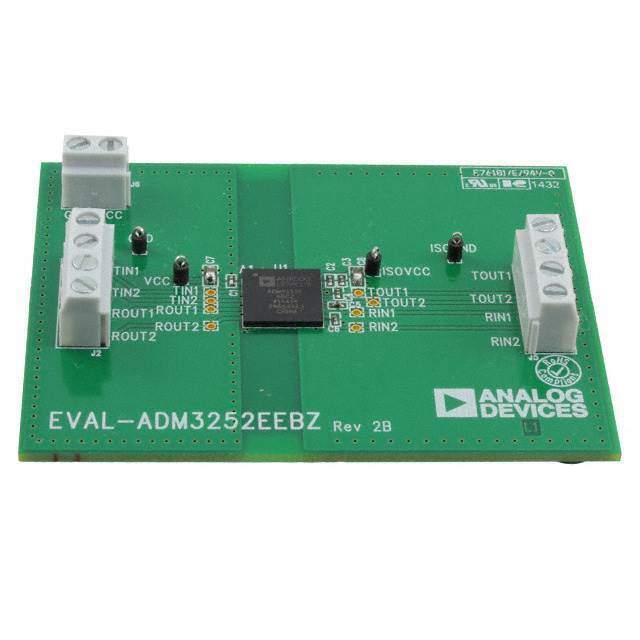

The EVAL-ADM3252EEBZ is a high-performance evaluation board offered by Analog Devices Inc., designed to demonstrate the capabilities of the ADM3252E, a robust, high-speed, 2.5 kV fully isolated, dual-channel RS-232/V.28 transceiver device. This evaluation board is an essential tool for engineers and designers who need to incorporate isolated RS-232 interfaces into their industrial, instrumentation, or communication systems.

Key Features:

• Isolation: The ADM3252E provides a 2.5 kV RMS signal and power isolated RS-232 transceiver solution, ensuring safety and preventing ground loops.
• Channels: Dual-channel operation allows for two RS-232 communication ports to be used simultaneously, increasing data throughput and system flexibility.
• Data Rates: Supports high data rates up to 460 kbps, enabling fast data communication for time-sensitive applications.
• Integrated Power: The device incorporates Analog Devices’ iCoupler® and isoPower® technology to provide isolated power from a single 5 V supply, simplifying design and reducing component count.
• EMI/EMC Performance: Enhanced EMI and EMC performance makes the board suitable for use in harsh industrial environments where electrical noise can be a significant issue.

Applications:

The EVAL-ADM3252EEBZ is ideal for a variety of applications, including:

• Industrial control and automation
• Instrumentation
• Data acquisition systems
• Medical equipment
• Isolated USB to RS-232 converters

Design and Development:

Equipped with industry-standard connectors, the EVAL-ADM3252EEBZ allows for quick and easy integration into existing systems. The board facilitates the testing of the ADM3252E's features and performance, providing a convenient platform for development and prototyping. Comprehensive documentation and support from Analog Devices Inc. ensure that designers can maximize the utility of the evaluation board to accelerate their product development cycle.

Conclusion:

The EVAL-ADM3252EEBZ from Analog Devices Inc. is a powerful tool for designers looking to implement isolated RS-232 communication with the reliability and performance expected from a leading semiconductor manufacturer. By providing power isolation, dual-channel capability, and high data rates, this evaluation board meets the critical needs of advanced industrial and communication applications.
