Products specifications

Category Development Boards, Kits, Programmers - Evaluation and Demonstration Boards and Kits
Mfr STMicroelectronics
Series MEMS
Package Bulk
Product Status Obsolete
Type Interface
Embedded Yes, MCU, 32-Bit
Utilized IC / Part STM32 and MEMS Demo Boards
Primary Attributes DIL24 Socket for ST MEMS Adapter Boards
Supplied Contents Board(s)
Secondary Attributes Graphical User Interface (GUI)
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8473.30.1180
Win Source Part Number 897943-STEVAL-MKI109V2
Ultra Librarian 3D Model Ultra Librarian STEVAL-MKI109V2 CAD Model

Description

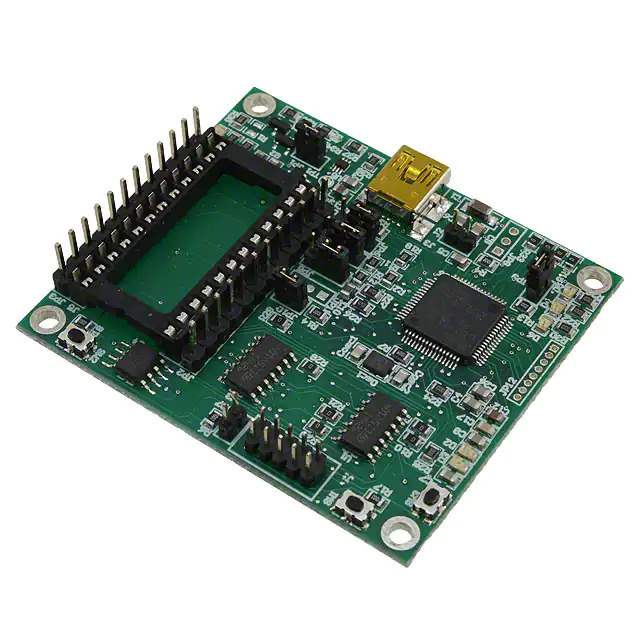

STEVAL-MKI109V2 - Professional MEMS Tool from STMicroelectronics

The STEVAL-MKI109V2 is a comprehensive development tool designed by STMicroelectronics to facilitate the evaluation and development of MEMS (Micro-Electro-Mechanical Systems) sensors. This professional tool is part of the ST's iNEMO system and is specifically tailored for motion MEMS and environmental sensors, providing a versatile platform for testing and data analysis.

The board is built around the STM32F401VET6 microcontroller, which is a high-performance ARM Cortex-M4 MCU with DSP and FPU instructions. This MCU is ideal for handling the complex computations required for sensor data processing while maintaining a high level of power efficiency.

Key Features:

  • Support for a wide range of MEMS sensors, including accelerometers, gyroscopes, magnetometers, and environmental sensors.
  • STM32F401VET6 high-performance ARM Cortex-M4 microcontroller.
  • Compatible with ST's extensive software libraries and development tools.
  • DIL 24 socket for easy sensor swapping and evaluation.
  • Integrated debugging and programming features via ST-LINK/V2.
  • USB connectivity for data streaming and device configuration.
  • Comprehensive set of connectors for easy integration with external hardware.

The STEVAL-MKI109V2 board includes an ST-LINK/V2 in-circuit debugger and programmer for the STM32 MCU, ensuring seamless firmware development and debugging. The board also features a DIL 24 socket that allows users to plug in various ST MEMS adapters, which support different sensor types. This modularity makes it an ideal platform for prototyping and experimenting with different sensors without the need for soldering.

Connectivity options on the STEVAL-MKI109V2 include a USB port for data streaming and communication with a host system. Additionally, it comes equipped with various connectors, including GPIOs, making it easy to interface with external components or systems for a more complex development environment.

The STEVAL-MKI109V2 is supported by a comprehensive suite of software tools provided by STMicroelectronics, including firmware libraries and development environments. These tools help streamline the development process, from initial sensor evaluation to final application deployment.
