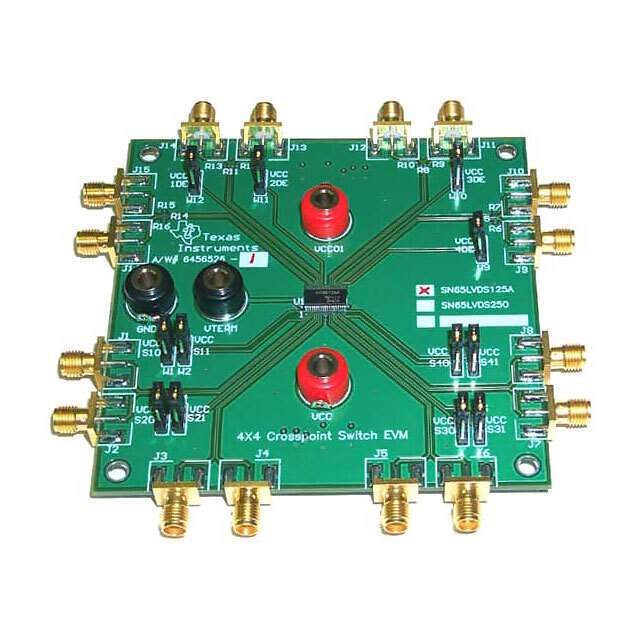

SN65LVDS125A Evaluation Module (EVM)

The SN65LVDS125A Evaluation Module (EVM) from Texas Instruments is a robust tool designed for engineers and developers to evaluate the performance and versatility of the SN65LVDS125A quadruple differential line receiver. This EVM serves as a comprehensive platform for testing the features and capabilities of the SN65LVDS125A device in a variety of applications.

Key Features of the SN65LVDS125AEVM:

• Integrated SN65LVDS125A Device: At the heart of the EVM is the SN65LVDS125A, which is a quadruple differential line receiver that operates with a 3.3V supply and is capable of receiving low-voltage differential signaling (LVDS) signals.
• High-Speed Data Transmission: The device is designed for high-speed data transmission over controlled impedance media of approximately 100 Ω. The transmission media may be printed circuit board traces, backplanes, or cables.
• Flexible Connectivity: The EVM includes connectors and test points that facilitate easy connection to external test and application circuitry, making it simple to integrate into a variety of test environments.
• Signal Integrity: The EVM is designed to showcase the excellent signal integrity and switching performance of the SN65LVDS125A, supporting data rates up to 400 Mbps.
• On-Board Termination: The module provides on-board termination resistors to match the differential input impedance, thereby minimizing reflections and ensuring signal fidelity.
• Power Supply Flexibility: The EVM can be powered through an external power supply, allowing users to test the device under different voltage conditions.

Applications:

The SN65LVDS125AEVM is suitable for a wide range of applications, including:

• Telecommunications
• Networking equipment
• High-speed data acquisition systems
• Computer peripherals
• Industrial control and automation

With its comprehensive feature set and ease of use, the SN65LVDS125A Evaluation Module is an excellent resource for designers looking to explore the capabilities of LVDS technology in their next high-speed communication or data transfer project.
