Microchip Technology's MIC2843YMT LED Driver

The MIC2843YMT is a high-efficiency, integrated 4-channel LED driver designed by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This compact and versatile driver is an ideal solution for powering multiple LEDs in a wide range of applications, including LCD backlighting, portable devices, and general lighting.

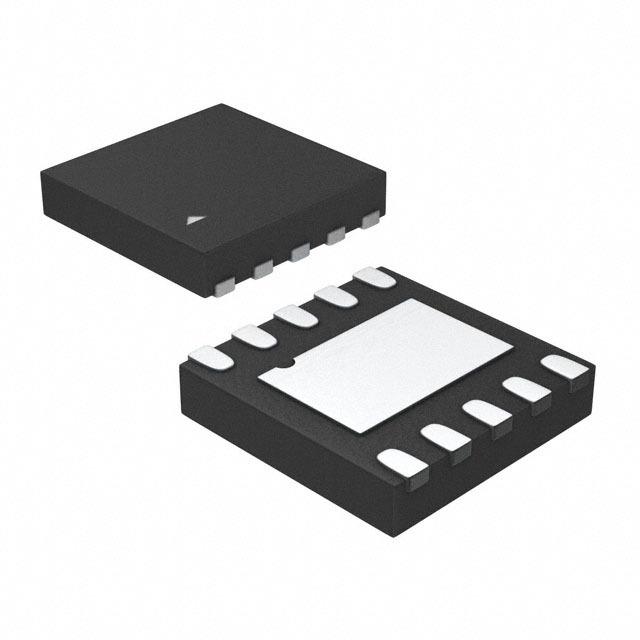

Constructed with a small 4mm x 4mm TQFN package, the MIC2843YMT is optimized for space-constrained applications. It boasts a 2.7V to 5.5V input voltage range, which allows it to operate efficiently in battery-powered devices. Each of the four channels can deliver up to 30mA of continuous current, and the current can be adjusted through external resistors, providing flexibility and precision in controlling the brightness of the LEDs.

One of the key features of the MIC2843YMT is its internal PWM (Pulse-Width Modulation) engine, which enables independent brightness control for each channel. This feature allows designers to create dynamic lighting effects and power-saving modes by adjusting the duty cycle of the LED current. Additionally, the driver includes an integrated over-temperature protection mechanism to safeguard the device and the LEDs from excessive heat, enhancing the system's reliability and lifespan.

The MIC2843YMT also offers a 1MHz fixed switching frequency, minimizing the size of external components and allowing for the use of small, low-profile inductors and capacitors. This contributes to a reduced overall solution footprint, making it an excellent choice for portable and compact electronic designs.

With its high efficiency, flexible current control, and compact size, the MIC2843YMT from Microchip Technology is a superior option for designers looking to develop advanced LED lighting solutions. Its ease of integration, combined with Microchip's reputation for quality and support, makes it a go-to choice for a diverse array of lighting applications.
