Products specifications

Category Circuit Protection>TVS - Diodes
Mfr Microchip Technology
Series Military, MIL-PRF-19500
Package Tape & Reel (TR)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 17V
Voltage - Breakdown (Min) 18.9V
Voltage - Clamping (Max) @ Ipp 27.6V
Current - Peak Pulse (10/1000µs) 53.3A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AB, SMC
Supplier Device Package SMCJ (DO-214AB)
Base Product Number SMCJ17
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names MSMCJ17A/TRMS
Standard Package 600
Win Source Part Number 966456-MSMCJ17A/TR
Ultra Librarian 3D Model Ultra Librarian MSMCJ17A/TR CAD Model

Description

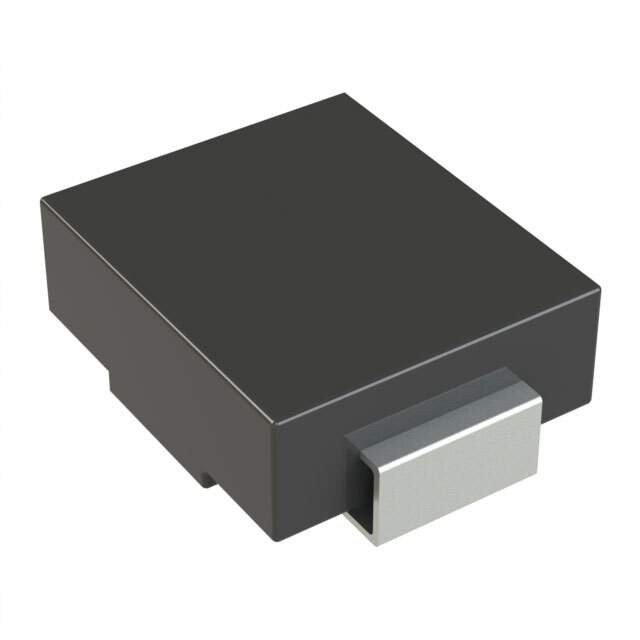

Microchip Technology MSMCJ17A/TR Product Overview

The MSMCJ17A/TR is a high-quality transient voltage suppression (TVS) diode designed and manufactured by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This robust TVS diode is engineered to protect sensitive electronic equipment from voltage spikes and transients induced by lightning and other transient voltage events.

Key Features

  • Standoff Voltage: The device has a standoff voltage of 17V, which makes it suitable for a variety of applications where this voltage level is required for protection.
  • Peak Pulse Power: It offers a peak pulse power dissipation of 1500 Watts at 10/1000μs waveform, ensuring reliable protection against high energy transients.
  • Clamping Voltage: With a low clamping voltage, the MSMCJ17A/TR responds swiftly to over-voltage events, thereby safeguarding connected components from potential damage.
  • Uni-directional Protection: This device is uni-directional, making it ideal for DC voltage applications where protection is needed in one direction only.
  • Package: The MSMCJ17A/TR comes in a DO-214AB package, also known as an SMC package, which is known for its compact size and durability.
  • RoHS Compliant: Compliance with RoHS standards ensures that the product is environmentally friendly and free of hazardous substances.
  • Automotive Qualification: It is AEC-Q101 qualified, making it suitable for automotive applications where reliability under harsh conditions is paramount.

Applications

This TVS diode is ideal for a range of applications, including:

  • Automotive systems
  • Industrial controls
  • Power supply units
  • Telecommunication systems
  • Consumer electronics

The MSMCJ17A/TR from Microchip Technology is a testament to the company's commitment to providing advanced protection solutions for electronic systems. Whether it's for automotive, industrial, or any other application that requires reliable transient voltage suppression, the MSMCJ17A/TR stands as a solid choice for designers and engineers seeking to enhance the durability and longevity of their electronic products.
