Same model may have multiple batches, images only for reference.

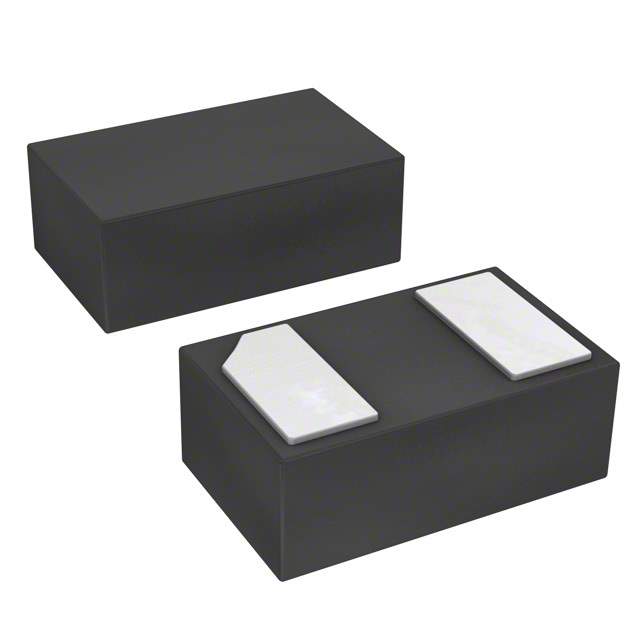

AOZ8831ADI-05 Real Image
Same model may have multiple batches, images only for reference.

AOZ8831ADI-05

Part No AOZ8831ADI-05
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog TVS - Diodes
Description TVS DIODE 5V 19.5V 2DFN / Ultra Low Capacitance One-line Bidirectional TVS Diode
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Maximum)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Maximum) at Ipp 19.5V
Current - Peak Pulse (10/1000μs) 2.5A (8/20μs)
Power - Peak Pulse 40W
Power Line Protection No
Applications Use For General
Capacitance at Frequency 0.3pF at 1MHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 0402
Supplier Device Package 2-DFN (1x0.6)
Manufacturer Pack Quantity 10,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802738-AOZ8831ADI-05
Ultra Librarian 3D Model Ultra Librarian AOZ8831ADI-05 CAD Model

Description

The Alpha & Omega Semiconductor AOZ8831ADI-05 is a bidirectional zener diode from Alpha & Omega Semiconductor.

  • Type: General Purpose
  • Package / Case: 2-DFN (1x0.6)
  • Voltage - Reverse Standoff: 5V (Maximum)
  • Voltage - Breakdown: 6V
  • Peak Pulse Current: 2.5A (8/20μs)
  • Power - Peak Pulse: 40W
  • Clamping Voltage: 19.5V
  • Capacitance: 0.3pF @ 1MHz
  • Operating Temperature: -40°C to 125°C
  • Packaging: Reel
  • Manufacturer Pack Quantity: 10,000
  • Popularity: High
  • Supply and Demand Status: Balance
