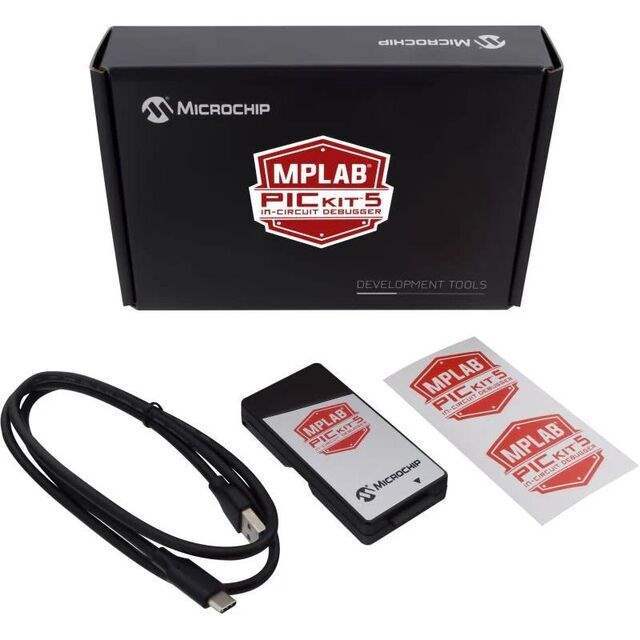

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Development Boards, Kits, Programmers> Programmers, Emulators, and Debuggers
Manufacturer Microchip Technology
Packaging Box
Part Status Active
Type Debugger, Programmer (In-Circuit/In-System)
For Use With/Related Products PIC Micro® MCU
Contents Board(s), Cable(s)
Contents PICKIT
Product Type Debuggers
Ultra Librarian 3D Model Ultra Librarian PG164150 CAD Model

Description

This chapter contains general information that will be useful to know before using the MPLAB® PICkit™ 5 In-Circuit Debugger.
