Products specifications

Win Source Part Number WS1168921-PIC16F1709-E/ML
Manufacturer Microchip Technology
Category Integrated Circuits (ICs) Embedded Microcontrollers
Series PIC® XLP™ 16F
Package Tube
Core Processor PIC
Core Size 8-Bit
Product Status Active
Operating Temperature -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 20-VFQFN Exposed Pad
Ultra Librarian 3D Model Ultra Librarian PIC16F1709-E/ML CAD Model

Description

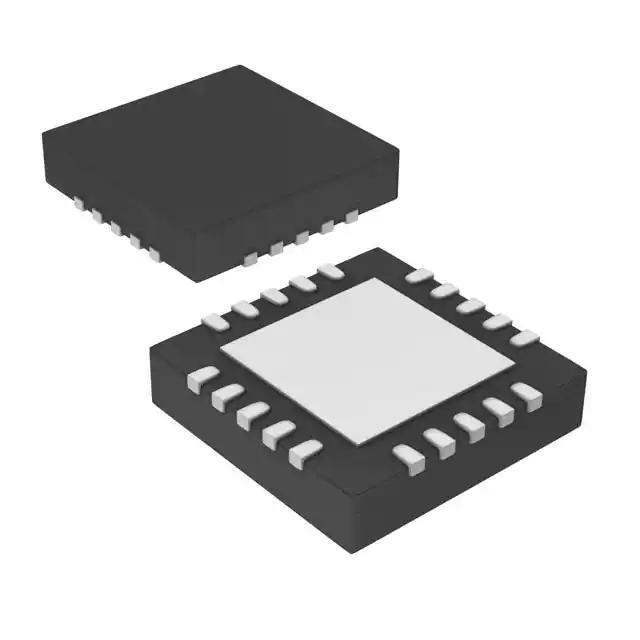

Microchip Technology PIC16F1709-E/ML Microcontroller

The PIC16F1709-E/ML is a versatile and powerful microcontroller unit (MCU) from the renowned manufacturer Microchip Technology. Designed with a focus on efficiency and adaptability, this microcontroller is a perfect fit for a wide range of applications, from industrial control systems to consumer electronics.

At the heart of the PIC16F1709-E/ML is an 8-bit processor that can run at a maximum frequency of 32 MHz, providing a solid balance between power consumption and processing capability. With 14 KB of flash memory, this MCU offers ample space for application code, and its 1 KB of RAM ensures smooth operation even with complex tasks.

One of the standout features of the PIC16F1709-E/ML is its rich set of peripherals. It includes up to 17 I/O pins, which are highly configurable to suit a variety of interfacing needs. The device also boasts an integrated 10-bit Analog-to-Digital Converter (ADC) with up to 17 channels, allowing for precise measurement of analog signals. Additionally, this MCU features two PWM modules, which enable accurate control over motor speeds or LED dimming.

The connectivity options for the PIC16F1709-E/ML are also noteworthy. It supports various serial communication protocols, including I2C, SPI, and EUSART, which makes it easy to integrate into systems that require data exchange with other devices or sensors. For applications demanding custom timing or counting functions, the MCU is equipped with two 16-bit timers and one 8-bit timer.

Enhanced safety features are embedded in the PIC16F1709-E/ML, such as Brown-Out Reset (BOR), Power-On Reset (POR), and a Watchdog Timer (WDT) to ensure reliable operation under unpredictable conditions. Moreover, the device is available in a 28-pin QFN package, which is not only space-efficient but also favorable for heat dissipation.

Whether you're developing a smart home gadget, an automated industrial machine, or a battery-operated portable device, the Microchip PIC16F1709-E/ML offers a compact, feature-rich solution that can meet the demands of your project with its robust architecture and extensive peripheral set.
