Microchip Technology's PIC16F18857-E/ML Microcontroller
The PIC16F18857-E/ML is a versatile and powerful microcontroller from Microchip Technology, designed to cater to a wide range of applications. This 8-bit MCU comes from the enhanced Mid-range Core product line, which is renowned for its low-power consumption and high performance. The PIC16F18857-E/ML is an ideal choice for embedded systems designers looking for a robust processor with a rich feature set in a compact package.
With its 14 KB of flash memory and 1024 bytes of RAM, this microcontroller provides ample space for complex applications and software stacks. It operates at a frequency of up to 32 MHz, offering a balanced mix of processing speed and power efficiency. The device also includes an EEPROM size of 256 bytes, providing reliable non-volatile storage for critical data and configuration settings.
One of the standout features of the PIC16F18857-E/ML is its extensive set of peripherals. It includes a 10-bit Analog-to-Digital Converter (ADC) with Computation (ADC2) for advanced sensor interfacing and signal processing tasks. The microcontroller also boasts two Capture/Compare/PWM (CCP) modules and a Complementary Waveform Generator (CWG) module, which are invaluable for control applications such as motor control and power conversion.
Connectivity options are robust, with support for I2C, SPI, and EUSART interfaces, enabling the device to communicate with a wide range of external components and other microcontrollers. The inclusion of a Configurable Logic Cell (CLC) module allows for customizable hardware logic, further extending the versatility of this MCU.

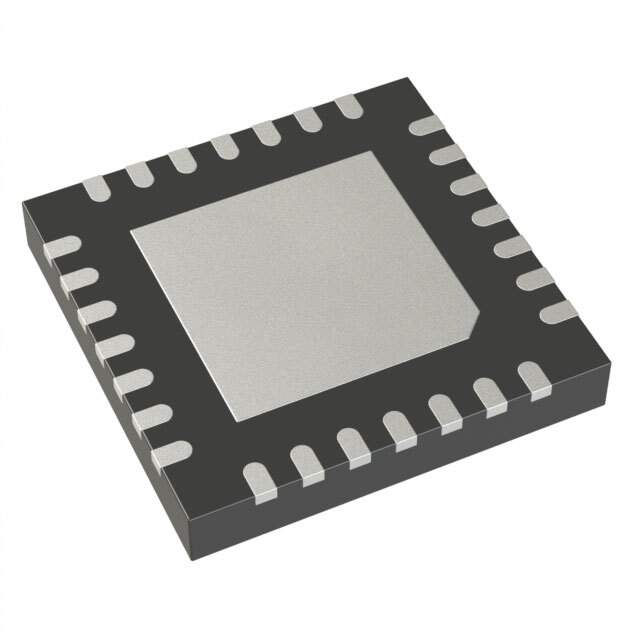

The PIC16F18857-E/ML is available in a 28-pin QFN package, which is suitable for space-constrained applications. Its extended operating temperature range makes it suitable for industrial and automotive environments. Moreover, the device is supported by Microchip's MPLAB X Integrated Development Environment (IDE) and their comprehensive software libraries, which simplify development and reduce time to market.
In summary, the PIC16F18857-E/ML from Microchip Technology is a feature-rich microcontroller that combines efficiency, flexibility, and power, making it an excellent choice for a multitude of embedded applications.
