Products specifications

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Microchip Technology
Package Bulk
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 60A (DC)
Voltage - Forward (Vf) (Max) @ If 480 mV @ 60 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5 mA @ 30 V
Mounting Type Stud Mount

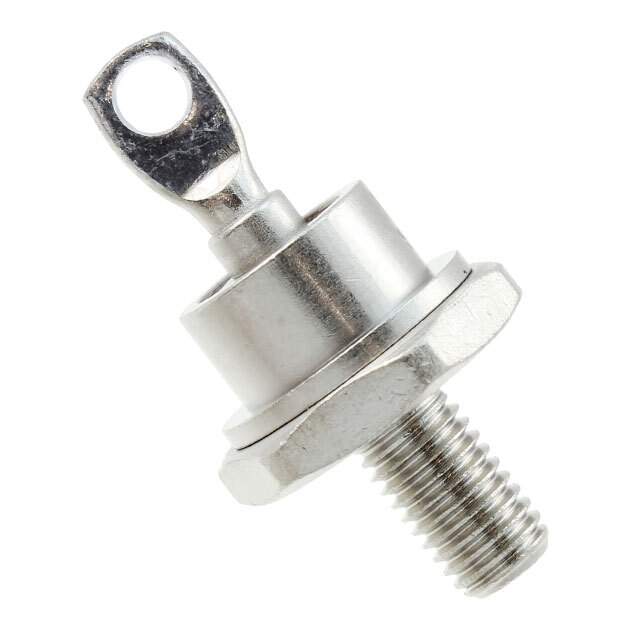

Package / Case DO-203AB, DO-5, Stud
Supplier Device Package DO-203AB (DO-5)
Operating Temperature - Junction -65°C ~ 150°C
Base Product Number SBR6030
Standard Package 1
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282308-SBR6030L
Ultra Librarian 3D Model Ultra Librarian SBR6030L CAD Model

Description

Introducing the SBR6030L from Microchip Technology

Microchip Technology presents the SBR6030L, a state-of-the-art Schottky Barrier Rectifier designed to meet the demanding requirements of high-efficiency power conversion systems. This robust component is engineered to provide superior performance in applications where low forward voltage drop and high surge current capability are critical.

Optimized Power Conversion

The SBR6030L is specifically optimized for power conversion applications, including but not limited to power supplies, inverters, and battery charging systems. Its low forward voltage drop ensures that power losses are minimized, which is essential for maintaining the efficiency of the overall system. This makes the SBR6030L an ideal choice for energy-sensitive designs where efficiency is paramount.

High Surge Current Capability

With its impressive high surge current capability, the SBR6030L is capable of handling high transient currents without failure, making it an excellent choice for applications that experience frequent power surges. This feature ensures reliability and longevity, providing peace of mind for designers and end-users alike.

Durable and Reliable

The SBR6030L is designed to withstand harsh conditions and is characterized by its robustness. Its superior thermal performance allows it to operate effectively across a wide temperature range, ensuring consistent performance even under extreme conditions. This durability makes the SBR6030L suitable for industrial and automotive applications where reliability is non-negotiable.

Key Features of the SBR6030L:

  • Low forward voltage drop to maximize system efficiency
  • High surge current capability for handling unexpected power spikes
  • Excellent thermal performance for improved reliability
  • Wide operating temperature range suitable for various environments
  • Compatible with high-frequency operation, reducing electromagnetic interference (EMI)

The SBR6030L by Microchip Technology is a testament to the company's commitment to providing high-quality components that push the boundaries of power management technology. Whether you're designing a new power supply or looking to improve the efficiency of an existing system, the SBR6030L offers the performance, reliability, and efficiency needed to take your designs to the next level.
