Products specifications

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tube
Driven Configuration Low-Side
Channel Type Single
Number of Drivers 1
Gate Type N-Channel, P-Channel MOSFET
Supply Voltage (V) 4.5V ~ 18V
Logic Voltage - VIL, VIH 0.8V, 2.4V
Current - Peak Output (Source, Sink) 6A, 6A
Input Type Inverting
Rise / Fall Time 25ns, 25ns
Temperature Range - Operating 0°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package TO-220-5
Supplier Device Package TO-220-5
Family Part Number TC4429
Manufacturer Pack Quantity 50
MSL Level Not Applicable
Win Source Part Number 1264597-TC4429CAT
Manufacturer Homepage www.telcom-semi.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Portable Devices, Computers & Computer Peripherals, Power Management
Ultra Librarian 3D Model Ultra Librarian TC4429CAT CAD Model

Description

Microchip Technology TC4429CAT - High-Speed MOSFET Driver

The TC4429CAT from Microchip Technology is a robust, high-speed, single-output MOSFET driver specifically designed to convert TTL or CMOS input logic levels to a higher voltage and current output with the capability to drive large capacitive loads with excellent switching performance. This driver is an ideal choice for driving power MOSFETs and IGBTs that operate in various applications such as switching power supplies, motor controllers, and inverters.

Key Features

  • High Peak Output Current: The TC4429CAT can deliver an impressive peak output current of 6A, ensuring efficient charging and discharging of gate capacitances.
  • Wide Operating Range: With an operating voltage range of 4.5V to 18V, this driver is versatile and can be used in a variety of circuit configurations and with different supply voltages.
  • High-Speed Operation: The device boasts a fast rise and fall time of 25ns with a 1000pF load, which is crucial for applications requiring quick switching times to minimize power losses.
  • Latch-Up Protection: The TC4429CAT is immune to latch-up, providing additional reliability and robustness in harsh electrical environments.
  • Input Logic Level Flexibility: Compatible with both TTL and CMOS input logic levels, this driver can interface directly with a wide range of microcontrollers and digital logic components.
  • Low Shoot-Through Current: Design measures have been put in place to minimize cross-conduction and shoot-through current, enhancing the overall efficiency and performance of the device.

Applications

The TC4429CAT MOSFET driver is widely used in applications that require high-speed and high-power switching. Some common applications include:

  • Switching power supplies
  • DC to DC converters
  • Motor controllers
  • Power inverters
  • Class D switching amplifiers

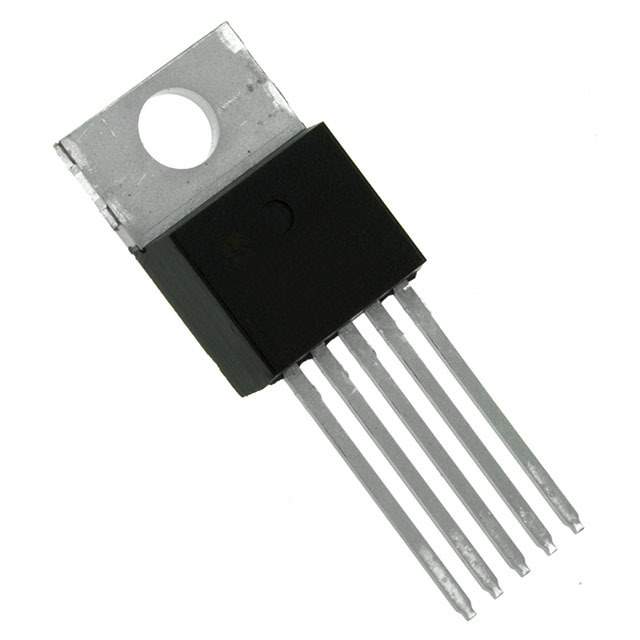

With its robust construction, the TC4429CAT is encapsulated in a 5-lead TO-220 package, ensuring heat dissipation is managed effectively when the device is operational in high-power applications. This package also allows for easy mounting onto PCBs and integration with other circuit components. As part of Microchip Technology's commitment to quality, the TC4429CAT is designed to meet the stringent requirements of the industrial and automotive markets, providing a reliable solution for driving MOSFETs in a wide range of electronic systems.
