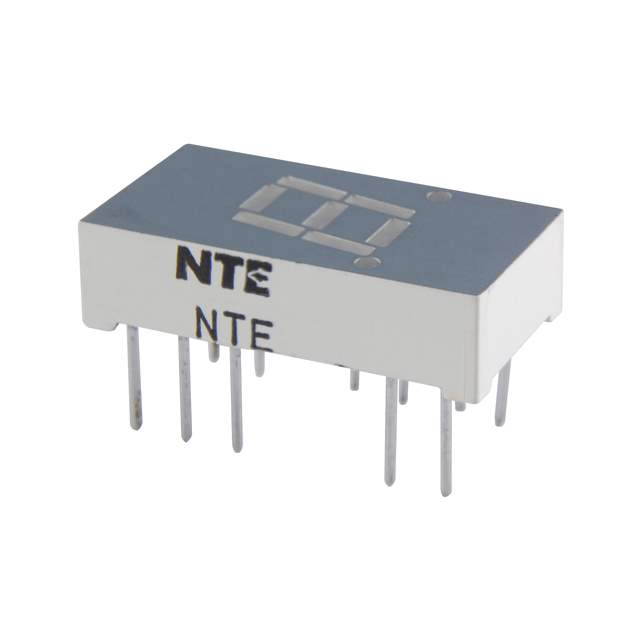

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr NTE Electronics, Inc
Package Bag
Number of Characters 1
Dimension 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm)
Digit/Alpha Size 0.30" (7.62mm)
Display Type 7-Segment
Common Pin Common Anode
Color Yellow
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 10mA
Millicandela Rating 2mcd
Wavelength - Peak 585nm
Power Dissipation (Max) 60mW
Package / Case 14-DIP (0.300", 7.62mm), 11 Leads
RoHS Status RoHS non-compliant
ECCN EAR99
HTSUS 8541.41.0000
Other Names 2368-NTE3055
Standard Package 1
Win Source Part Number 1081632-NTE3055
Ultra Librarian 3D Model Ultra Librarian NTE3055 CAD Model

Description

The NTE3055 is an optoelectronic component manufactured by NTE Electronics, Inc.

  • Type: It is a 7-segment display module
  • Digit/Alpha Size: with a digit/alpha size of 0.30" (7.62mm)
  • Common Pin: and a common pin of common anode.
  • Color: This yellow colored display module has a millicandela rating of 2mcd
  • Voltage-Forward (Vf): and a voltage-forward (Vf) of 2.1V.
  • Current: It operates with a current of 10mA
  • Peak Wavelength: and has a peak wavelength of 585nm.
