Products specifications

Category Discrete Semiconductor Products>Diodes - Zener - Single
Mfr NTE Electronics, Inc
Package Bag
Voltage - Zener (Nom) (Vz) 120 V
Tolerance ±5%
Power - Max 10 W
Impedance (Max) (Zzt) 75 Ohms
Temperature Range - Operating -65°C ~ 175°C

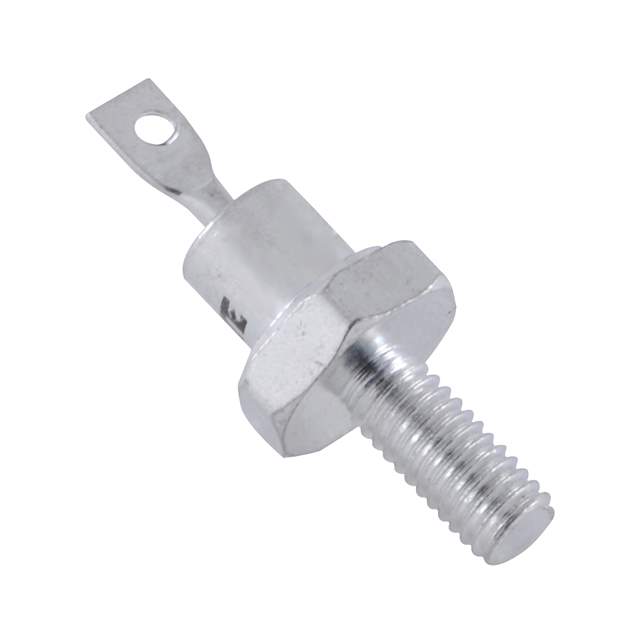

Mounting Type Chassis, Stud Mount
Package / Case DO-203AA, DO-4, Stud
Supplier Device Package DO-4
ECCN EAR99
HTSUS 8541.10.0050
Other Names 2368-NTE5223A
Standard Package 1
Win Source Part Number 1082091-NTE5223A
Ultra Librarian 3D Model Ultra Librarian NTE5223A CAD Model

Description

The NTE5223A is a silicon controlled rectifier (SCR) designed for various switching and control applications. It is a three-terminal device, acting as a solid-state switch that can control relatively large amounts of power with a small triggering signal. SCRs are known for their fast switching speeds and ability to handle high current and voltage levels, making them suitable for applications requiring precise and reliable power control.

Applications

  • Light dimmers
  • Motor speed controls
  • Voltage regulators
  • Phase control circuits
  • Battery chargers
  • Crowbar circuits (overvoltage protection)

Features

  • High Blocking Voltage: Ability to withstand high voltage in the off-state.
  • High Surge Current Capability: Can handle large surge currents without damage.
  • Fast Switching Speed: Quickly switches from off to on state upon triggering.
  • Low On-State Voltage: Minimal voltage drop when conducting current.
  • Sensitive Gate Triggering: Requires a small current to trigger the device.
  • RoHS Compliant: Lead-free construction for environmental compliance.

Benefits

  • Efficient Power Control: Provides precise and efficient control of AC power.
  • Reliable Operation: Robust design ensures reliable performance in demanding applications.
  • Compact Size: Small form factor allows for easy integration into various circuits.
  • Enhanced Safety: Overvoltage protection capabilities prevent damage to sensitive components.
  • Cost-Effective: Offers a cost-effective solution for power control applications.
  • Improved Energy Efficiency: Reduces energy waste by providing efficient power switching.

Specifically, the NTE5223A features a repetitive peak off-state voltage (VDRM) and repetitive peak reverse voltage (VRRM) rating that specifies the maximum voltage the SCR can withstand in the off-state without triggering or breaking down. The gate trigger current (IGT) is the minimum current required at the gate to turn the SCR on. The on-state current (IT(RMS)) specifies the maximum continuous current the SCR can handle when it is conducting. The holding current (IH) is the minimum current required to maintain the SCR in the on-state; if the current falls below this value, the SCR will turn off.

Additionally, the SCR's thermal resistance characteristics are important for determining its ability to dissipate heat and maintain a safe operating temperature. Adequate heat sinking may be required for high-current applications to prevent overheating and ensure long-term reliability. Understanding these specific parameters is crucial for selecting and implementing the NTE5223A in a particular application.
