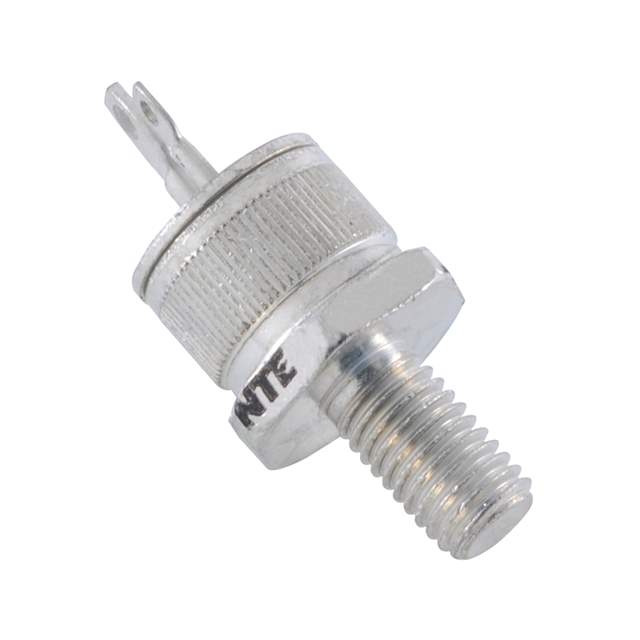

NTE5502 Real Image
Same model may have multiple batches, images only for reference.

NTE5502

Part No NTE5502
Manufacturer NTE
Catalog SCRs - Single
Description SCR 100V 16A TO48  /  SCR 100 V Standard Recovery Stud Mount TO-48
Datasheet
NTE5502 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr NTE Electronics, Inc
Package Bag
Voltage - Off State 100 V
Voltage - Gate Trigger (Vgt) (Max) 3 V
Current - Gate Trigger (Igt) (Max) 25 mA
Voltage - On State (Vtm) (Max) 1.5 V
Current - On State (It (AV)) (Max) 25 A
Current - Hold (Ih) (Max) 20 mA
Current - Off State (Max) 10 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 200A @ 60Hz
SCR Type Standard Recovery
Temperature Range - Operating -65°C ~ 125°C (TJ)
Mounting Type Stud Mount
Package / Case TO-208AA, TO-48-3, Stud
Supplier Device Package TO-48
RoHS Status RoHS non-compliant
ECCN EAR99
HTSUS 8541.30.0000
Other Names 2368-NTE5502
Standard Package 1
Win Source Part Number 1009135-NTE5502
Ultra Librarian 3D Model Ultra Librarian NTE5502 CAD Model

Description

The NTE5502 thyristor is a standard recovery SCR with a maximum off-state voltage of 100V and a maximum on-state current of 25A.

  • Maximum Off-State Voltage: 100V
  • Maximum On-State Current: 25A
  • Gate Trigger Voltage: 3V
  • Gate Trigger Current: 25mA
  • Maximum On-State Voltage: 1.5V
  • Maximum Non-Repetitive Surge Current: 200A @ 60Hz
  • Mounting Type: Stud Mount
  • Package/Case: TO-208AA, TO-48-3, Stud
  • Temperature Range: -65°C to 125°C (TJ)
  • Manufacturer: NTE Electronics, Inc.
  • RoHS: Non-compliant
  • ECCN: EAR99
