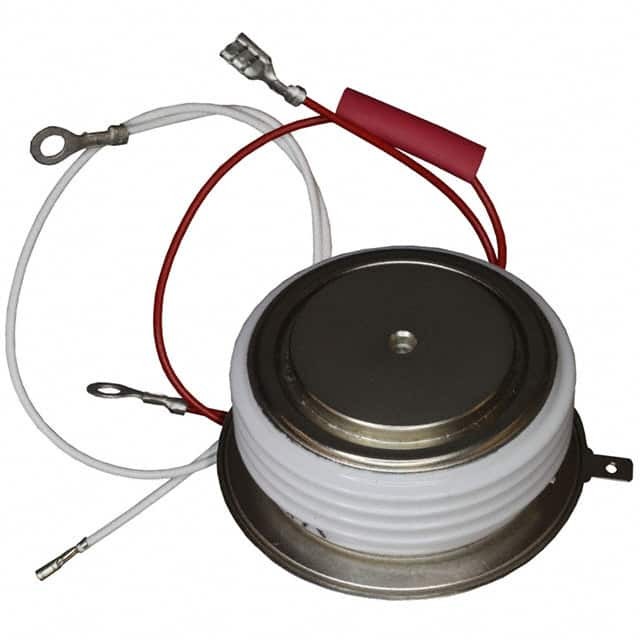

Same model may have multiple batches, images only for reference.
VS-ST730C18L0 Vishay
Same model may have multiple batches, images only for reference.

VS-ST730C18L0

Part No VS-ST730C18L0
Manufacturer Vishay
Catalog SCRs - Single
Description SCR 1.8KV 2000A B-PUK  /  SCR 1.8 kV 2000 A Standard Recovery Chassis Mount TO-200AC, B-PUK
Datasheet
VS-ST730C18L0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Voltage - Off State 1.8 kV
Voltage - Gate Trigger (Vgt) (Max) 3 V
Current - Gate Trigger (Igt) (Max) 200 mA
Voltage - On State (Vtm) (Max) 1.62 V
Current - On State (It (AV)) (Max) 990 A
Current - On State (It (RMS)) (Max) 2000 A
Current - Hold (Ih) (Max) 600 mA
Current - Off State (Max) 80 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 17800A, 18700A
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Chassis Mount
Package / Case TO-200AC, B-PUK
Supplier Device Package TO-200AC, B-PUK
Base Product Number ST730
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Other Names *ST730C18L0,ST730C18L0,VS-ST730C18L0-ND,VSST730C18L0,VSST730C18L0-ND
Standard Package 3
Win Source Part Number 1096602-VS-ST730C18L0
Ultra Librarian 3D Model Ultra Librarian VS-ST730C18L0 CAD Model

Description

The ST730C18L0 is a thyristor from Vishay General Semiconductor - Diodes Division.

  • Maximum Current Hold (Ih): 600 mA
  • Off-State Voltage: 1.8 kV
  • Gate Trigger Voltage (Vgt): 3 V
  • Maximum Gate Trigger Current (Igt): 200 mA
  • On-State Voltage (Vtm): 1.62 V
  • Maximum On-State Current (It (AV)): 990 A
  • Maximum On-State RMS Current (It (RMS)): 2000 A
  • Maximum Off-State Current: 80 mA
  • Non-Repetitive Surge Current @ 50, 60 Hz (Itsm): 17800A, 18700A
  • Type: It is a standard recovery SCR type and is mounted using chassis mount.
  • Package/Case: TO-200AC, B-PUK
  • Temperature Range: -40°C to 125°C
