Same model may have multiple batches, images only for reference.

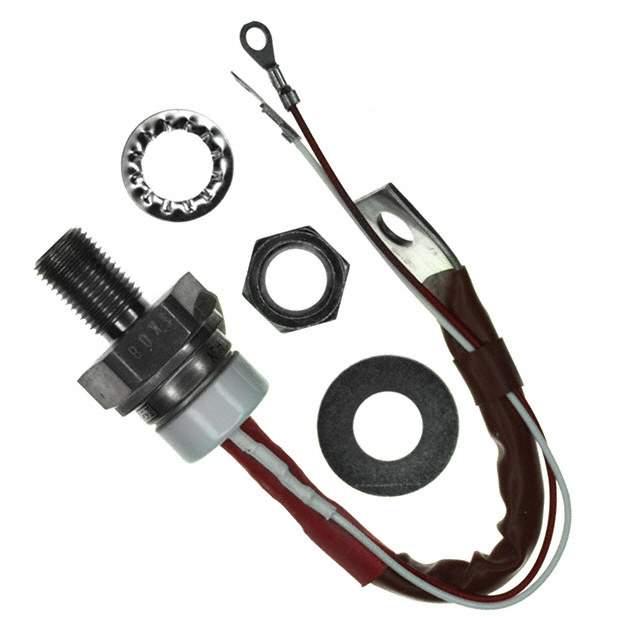

VS-ST230S12P1VPBF Real Image
Same model may have multiple batches, images only for reference.

VS-ST230S12P1VPBF

Part No VS-ST230S12P1VPBF
Manufacturer Vishay
Catalog SCRs - Single
Description SCR 1.2KV 360A TO209AB  /  SCR 1.2 kV 360 A Standard Recovery Chassis, Stud Mount TO-209AB (TO-93)
Datasheet
VS-ST230S12P1VPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Voltage - Off State 1.2 kV
Voltage - Gate Trigger (Vgt) (Max) 3 V
Current - Gate Trigger (Igt) (Max) 150 mA
Voltage - On State (Vtm) (Max) 1.55 V
Current - On State (It (AV)) (Max) 230 A
Current - On State (It (RMS)) (Max) 360 A
Current - Hold (Ih) (Max) 600 mA
Current - Off State (Max) 30 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 4800A, 5000A
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Chassis, Stud Mount
Package / Case TO-209AB, TO-93-4, Stud
Supplier Device Package TO-209AB (TO-93)
Base Product Number ST230
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Other Names VSST230S12P1VPBF
Standard Package 12
Win Source Part Number 1096457-VS-ST230S12P1VPBF
Ultra Librarian 3D Model Ultra Librarian VS-ST230S12P1VPBF CAD Model

Description

The VS-ST230S12P1VPBF is a thyristor manufactured by Vishay General Semiconductor - Diodes Division.

  • Manufacturer: Vishay General Semiconductor - Diodes Division
  • Mounting Type: chassis and stud mounting
  • Current - On State (It (AV)): 230 A
  • Current - Off State: 30 mA
  • Compliance: RoHS compliant and lead-free
