The 74HCT20N,652 is a high-quality integrated circuit from NXP Semiconductors, known for its exceptional performance and reliability in a wide range of electronic applications. This particular model is part of the 74HCT series, which is compatible with TTL levels and designed to operate at the same speed as low power Schottky TTL (LSTTL).

Key Features

• Logic Type: The 74HCT20N,652 is a dual 4-input NAND gate that provides the function of the NAND operation and is suitable for implementing a variety of logic functions in digital circuits.
• Supply Voltage Range: It operates at a supply voltage range of 4.5V to 5.5V, making it compatible with standard 5V digital systems.
• High-Speed Performance: With a typical propagation delay of 8ns, it ensures high-speed operation that is crucial for time-sensitive applications.
• Output Current: Capable of driving up to 5.5mA at the output, this IC can directly drive LEDs and other low-power devices.
• Temperature Range: It can operate over a wide temperature range, making it suitable for industrial-grade applications.

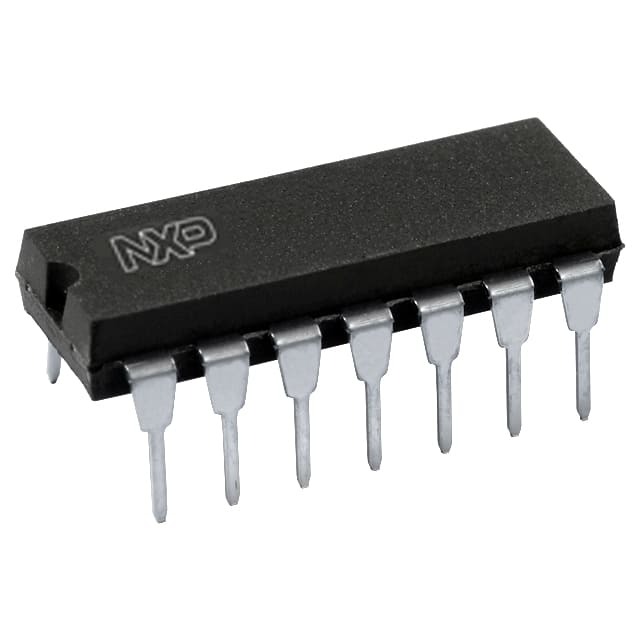

• Packaging: The device is available in a DIP-14 (Dual In-line Package) which is suitable for through-hole mounting, ensuring easy integration into a variety of circuit boards.

Applications

The 74HCT20N,652 is versatile and can be used in numerous applications, such as:

• Logic function implementation
• Signal processing
• Complex gate functions
• Control systems
• Computing devices

Quality and Reliability

NXP Semiconductors is committed to delivering products that meet the highest standards of quality and reliability. The 74HCT20N,652 is subjected to rigorous testing and quality control measures to ensure it performs to specifications in various environments and applications.

Ordering Information

To order the 74HCT20N,652 or to obtain more information about this product, please visit NXP Semiconductors' official website or contact an authorized distributor. Ensure that you are getting genuine products by purchasing from reputable sources.
