NXP 74HCT221D Dual Non-Retriggerable Monostable Multivibrator

The NXP 74HCT221D is a high-performance, dual non-retriggerable monostable multivibrator that belongs to the 74HCT family. This integrated circuit (IC) is designed to provide precise timing for a wide range of applications. It is particularly well-suited for use in timing, pulse shaping, and signal processing tasks in various digital systems.

Each multivibrator in the 74HCT221D features two inputs, an active LOW trigger (A) and an active HIGH trigger (B), and a clear (CLR) input for directly resetting the output (Q) to the low state. The clear input is also an active LOW input, ensuring the multivibrator is reset quickly and efficiently. The dual design allows for the use of two independent timing circuits within a single package, making it a space-efficient choice for complex circuit designs.

The timing duration is controlled by the external resistor (Rext) and capacitor (Cext) connected to the RCext pin. This provides designers with the flexibility to adjust the timing period as per the requirements of their specific application. The output pulse width can be varied from a few nano-seconds to several hundred milliseconds, offering a broad range of timing intervals.

Constructed with silicon gate CMOS technology, the 74HCT221D offers the high noise immunity and low power consumption characteristic of CMOS devices, along with speeds comparable to LSTTL (Low-Power Schottky TTL). It has the ability to drive 10 LSTTL loads and is also compatible with TTL levels, ensuring easy integration into existing systems that use TTL logic.

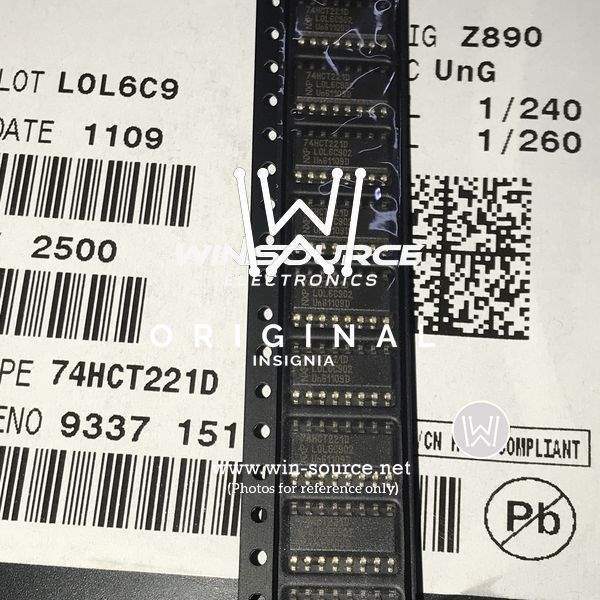

The device is available in a 16-pin SO package, which is suitable for surface-mount technology (SMT), making it ideal for use in compact and high-density electronic assemblies. The 74HCT221D operates over a wide temperature range and is designed to meet the stringent quality and reliability standards expected of NXP Semiconductors' products.

Overall, the NXP 74HCT221D is a versatile and reliable component for designers who require stable and accurate timing solutions in their digital circuit designs.
