Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Transistor Polarity NPN
Maximum Current Collector 500mA
VCEO Maximum Collector-Emitter Breakdown Voltage 45V
Max Vce (sat) 700mV @ 50mA, 500mA
Collector Cut-off Current(Max) 100nA (ICBO)
Typical Gain (hFE) (Min) 100 @ 100mA, 1V
Maximum Power Dissipation 200mW
Frequency - Transition 100MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-323-3
Win Source Part Number 095924-BC817W
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name BC817W
Introduction Date September 01, 1994
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian BC817W CAD Model

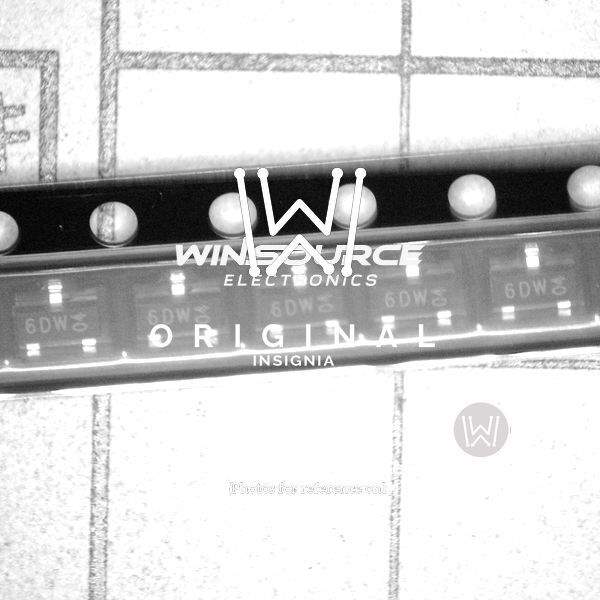

Description

The NXP BC817W is a small-signal NPN bipolar junction transistor (BJT) designed for general-purpose switching and amplification applications. This versatile component is a key element in a wide range of electronic circuits, from consumer electronics to industrial control systems. The BC817W is housed in a compact SOT-323 package, making it suitable for space-constrained applications.

Key Features

  • High Current Capability: The BC817W can handle continuous collector currents up to 500 mA, allowing it to drive moderate loads directly.
  • Low Voltage Operation: With a maximum collector-emitter voltage of 45 V, it is suitable for low to medium voltage applications.
  • High Gain Bandwidth Product: It offers a transition frequency of 100 MHz, making it suitable for amplification in RF and other high-frequency applications.
  • Surface-Mount Package: The SOT-323 package is ideal for automated assembly processes and helps reduce the overall size of the circuit.

Applications

The BC817W's characteristics make it well-suited for a variety of applications, including:

  • Switching loads in portable devices
  • Driver stages in hi-fi amplifiers and audio equipment
  • Signal processing in telecommunication devices
  • Control circuits in power management solutions

Technical Specifications

Parameter Value Package SOT-323 Transistor Polarity NPN Collector-Emitter Voltage (Vceo) 45 V Collector Current (Ic) 500 mA Power Dissipation (Pd) 250 mW DC Current Gain (hFE) 100 to 600 Transition Frequency (fT) 100 MHz

The NXP BC817W is a reliable and efficient solution for designers looking for a general-purpose transistor with a balance of performance and size. Its robustness and versatility make it an essential component in a multitude of electronic applications.
