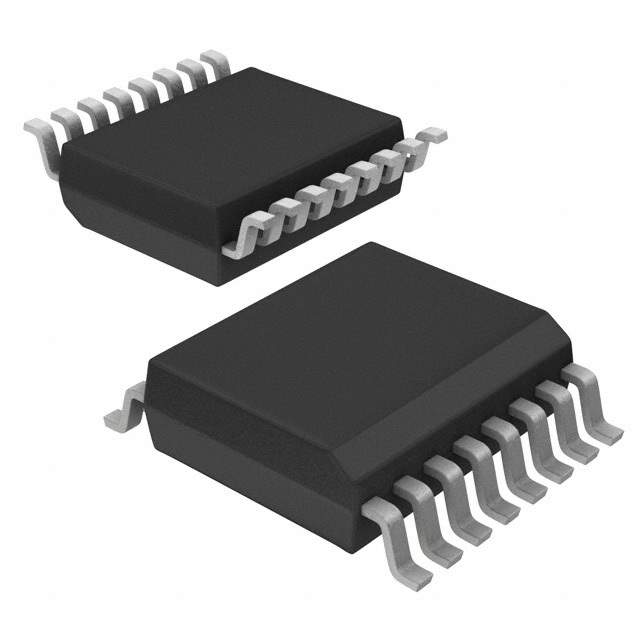

NXP IP4772CZ16 HDMI Interface ESD Protection

The NXP IP4772CZ16 is a state-of-the-art ESD protection device designed to safeguard high-speed interfaces such as HDMI (High-Definition Multimedia Interface) against electrostatic discharges and other voltage-induced transients. This integrated circuit is specifically tailored to meet the stringent requirements of HDMI 1.3, 1.4, and 2.0 standards, ensuring that your multimedia devices deliver pristine video and audio quality without succumbing to the damaging effects of ESD events.

Featuring six channels of ESD protection, the IP4772CZ16 is capable of protecting all the differential pairs found in a standard HDMI interface. It also includes additional protection for the HDMI control lines, thereby offering a comprehensive defense mechanism for your HDMI-enabled devices such as TVs, gaming consoles, computers, and home theater systems.

The device incorporates low-capacitance rail-to-rail diodes in conjunction with an integrated pull-up resistor on the hot plug detect (HPD) line, which not only protects against ESD but also ensures signal integrity for high-speed data transmission. The low clamping voltage of the IP4772CZ16 minimizes the stress on protected ICs during an ESD event, further enhancing the longevity and reliability of the end product.

With its small form factor, the IP4772CZ16 comes in a leadless HVQFN16 package that is not only space-efficient but also offers excellent thermal performance. This makes it an ideal choice for sleek, modern electronic devices where space is at a premium and heat management is crucial.

Installation is made easy with the IP4772CZ16's compatibility with standard manufacturing processes. It does not require any special handling or assembly techniques, making it a user-friendly option for mass production.

In summary, the NXP IP4772CZ16 provides robust ESD protection for HDMI interfaces, ensuring devices are shielded from the transient conditions frequently encountered in consumer electronic environments. By integrating this protection device into your product design, you can significantly enhance the durability and performance of your HDMI applications.
